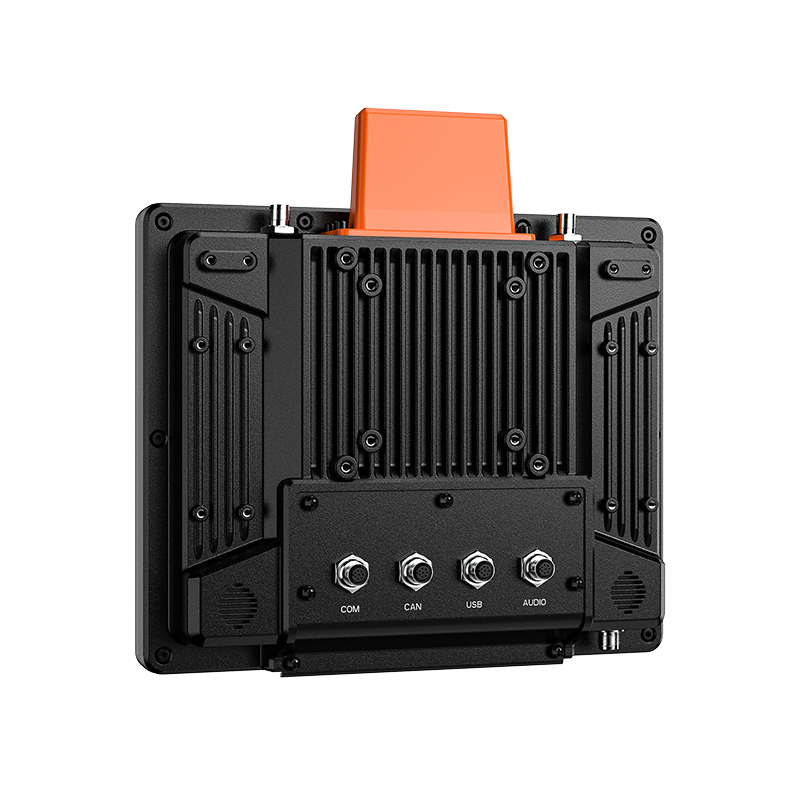

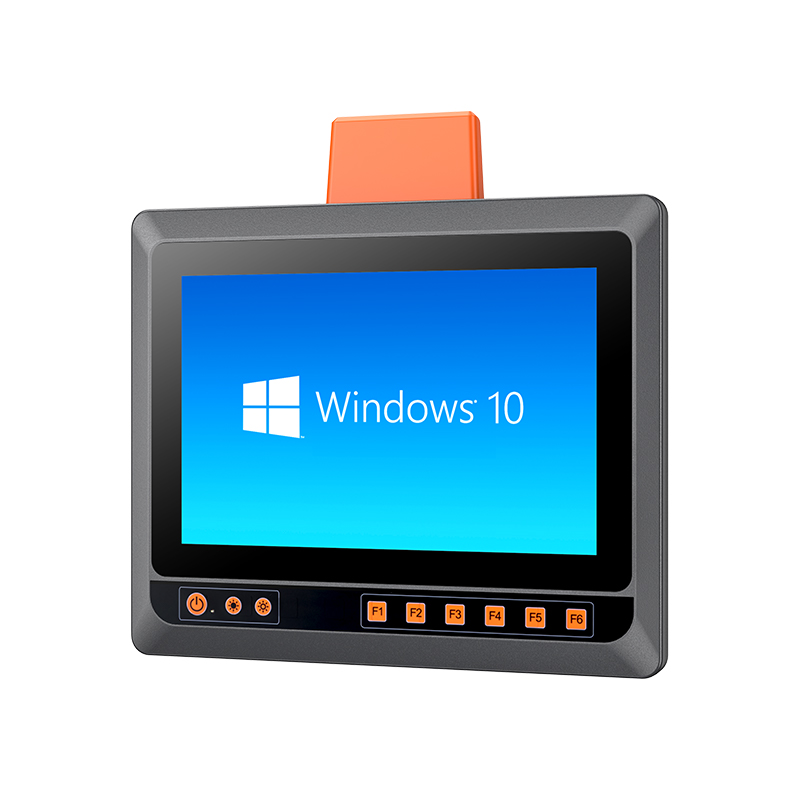

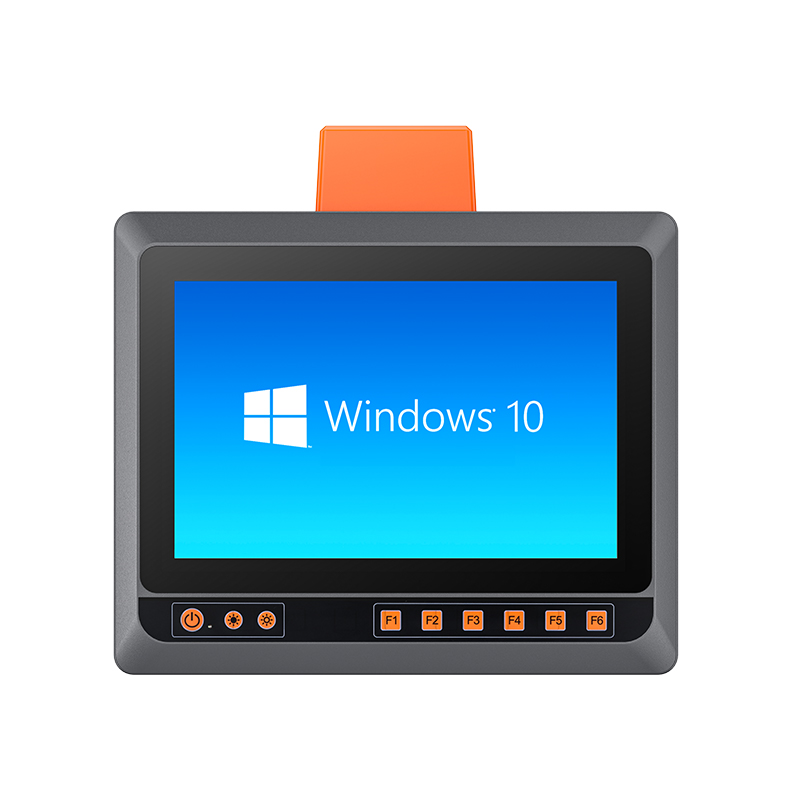

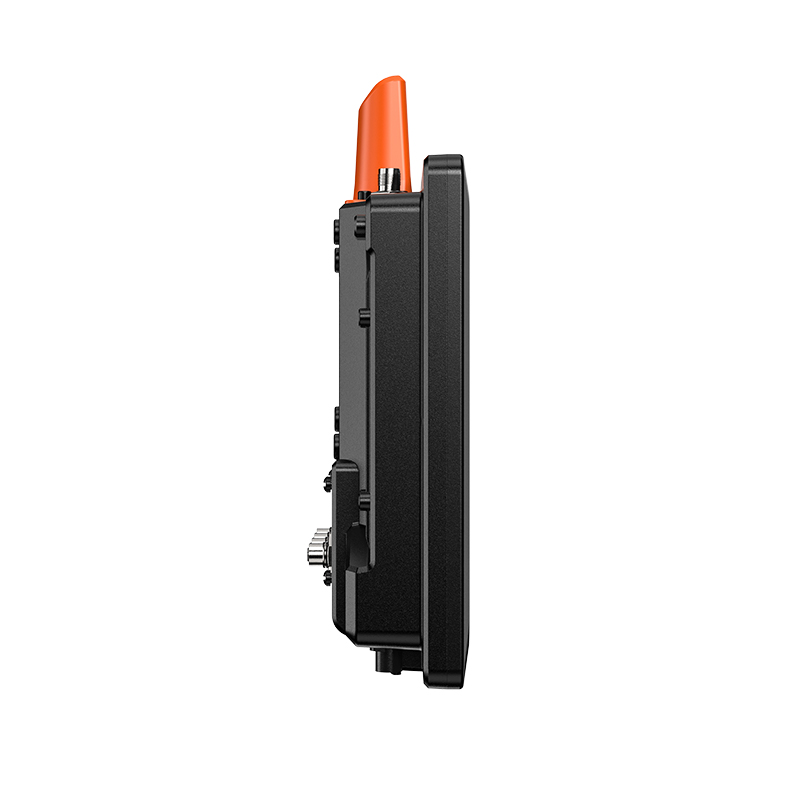

MVT-2110 10.1″ Intel Core I5-6200U Vehicle Computer with M12 Connectors

10.1″ Industrial LCD Screen with P-cap Touch Panel
Intel® Core™ I5-6200U Processor
Rugged and fanless Design, IP65
8-36V DC Input, with Ignition intelligent Switch Function
USB, RS-232/422/485, LAN, DIO, etc.
Optional WiFi, Bluetooth, LTE, GPS, CAN2.0



MVT series are rugged vehicle computers launched by Darveen for mining and other industries. They are equipped with Intel J1900 low-power processor. They can fully utilize Microsoft Windows data processing capabilities in mobile vehicle and improve application and network management capabilities while maintaining the flexibility and easy running of multitasking applications. It complies with STD-MIL-810G and IP65 standards, can operate freely in the most severe environments.
MVT-2110 adopts 10.1-inch LCD screen and industrial resistance touch panel, 8~36V wide voltage DC input power management with Power ignition delay switch function, and built-in temperature control module, optional 802.11a/b/g/n/ac, Bluetooth V4.0, full Netcom LTE, dedicated network 1.4G/1.8G LTE, GPS/GNSS/Beidou, CAN2.0B and other modules all of which make it suitable for the dispatching management of vehicles in the mining industry.

Specifications

System CPU Intel® Core ™ I5-6200U
Memory 1 x SO-DIMM DDR4 (Up to 16GB)
Storage 1 x Full-size Mini-PCIe for mSATA SSD
Operating System Windows 7/10, Linux
Display Size 10.1-Inch
Resolution 1280 x 800
Brightness 400 cd/m ²
Backlight LED
LED Lifetime 50000 Hrs
Touchscreen Type P-CAP Touch
Keypad Power Switch Power Switch
Brightness Brightness Adjustable
Function Key Custom Function Keys F1~F6
I/O Serial Port 2 x RS-232/485
USB Port 2 x USB2.0
Ethernet 1/2 x GbE LAN
DIO 4 in & 4 out, with 3.3V power (Optional)
CAN Bus 2 x CAN2.0B (Optional, compatible CAN2.0A, support
J1939 protocol and in accordance with ISO 11898-1/2/3)
Others 1 x DC-IN
Audio Speaker 2 x Speaker (8ohm, 2W)
Communication WLAN 802.11a/b/g/n/ac (Optional)
WWAN 4G LTE (Optional, LTE, HSPA+, EDGE, GSM/GPRS)
Bluetooth Bluetooth 4.0 (Optional)
GNSS GPS/Beidou/Glonass (Optional)
Power Specification Power Input DC 8~36V
Power Consumption 24W (Typ.)
Ignition On/Off Delay start, default 10 seconds
Delay shutdown, default 10 seconds; (The time can be adjusted by Jumper)
Hardware power off time is 30 seconds after the device detects the Ignition
signal
Environment Operating Temperature -20~60 °C
Relative Humidity 5%-90%,@ 40 °C (non-condensing)
IP Level IP65
Vibration MIL-STD-810G Method 516.6 Procedure I
MIL-STD-810G Method 514.6 Procedure I
Certifications CE, FCC
Physical Characteristics Material Aluminum

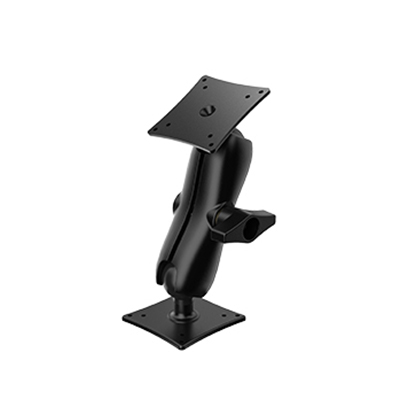

Mounting Mode VESA-mount
Dimension (W x L x H) 280 x 230 x 69 mm
Weight 3.3Kg
       Packing List 1 x MVT-2110
1 x AC-DC Power Adapter
1 x Certificate
1 x Warranty Card
1
