SPC-5150 15″ Intel Core I5-6200U Resistive Touch Stainless Steel Panel PC

IIntel Core I5-6200U (2.3 GHz)
15″ industrial LCD panel and touch

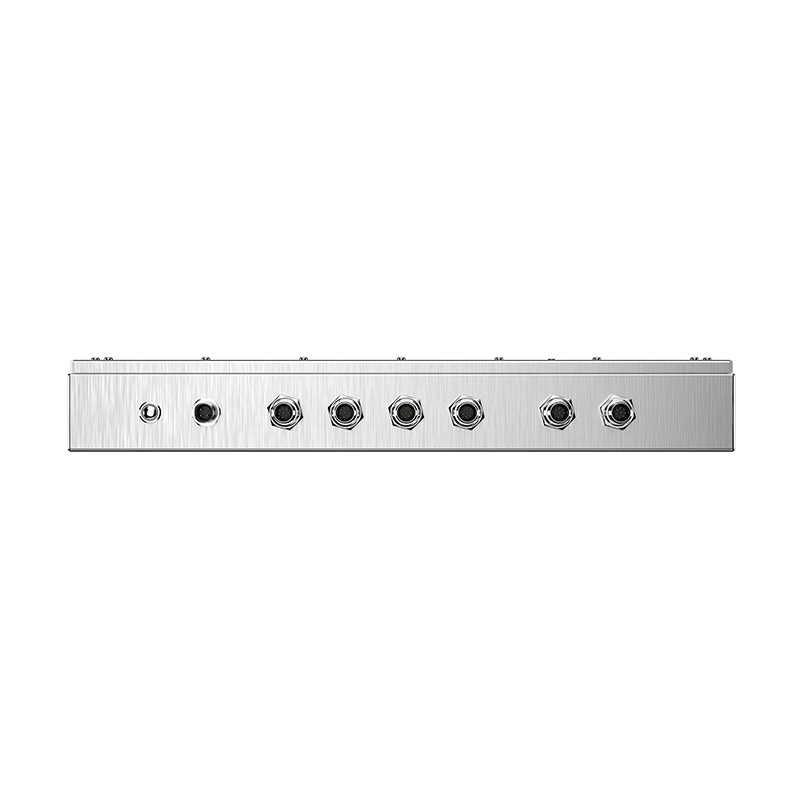

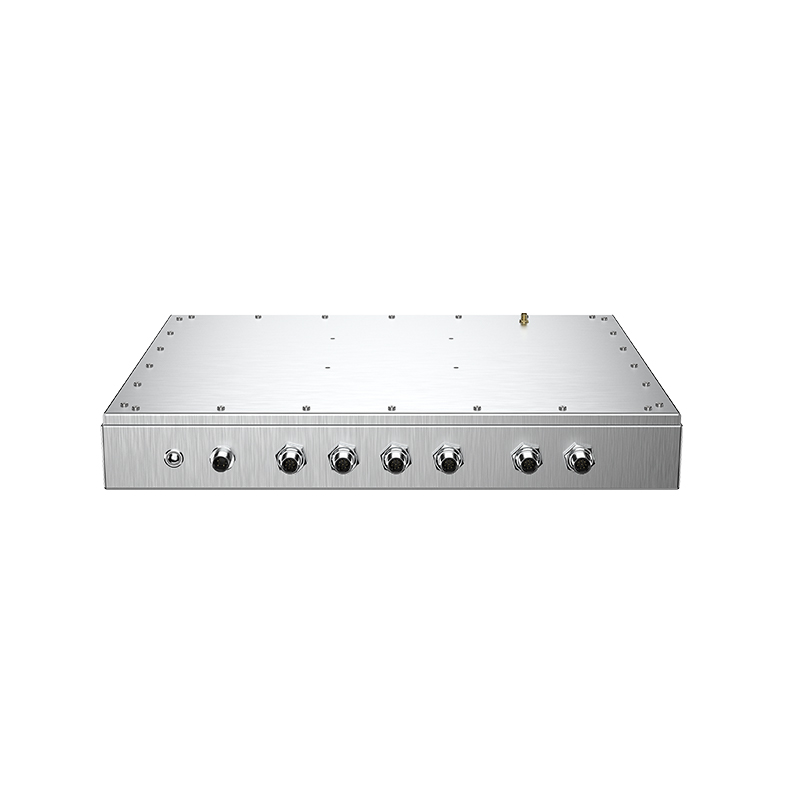

M12 I/O Connectors
Food-grade SUS304 stainless steel housing
Fanless and IP65 Protection
-10~50℃ Wide temperature operating
Optional 9~36VDC input
Optional WiFi, Bluetooth, 4G, 5G

SPC-5150 15″ stainless steel industrial tablet computer uses 304 food-grade stainless steel shell, which has good corrosion resistance, durability and easy to clean. The computer adopts fanless and waterproof design to meet IP66 protection level. M12 full waterproof interface can better protect internal devices. It can choose 15-19 inch multi-size display screen, which is suitable for automatic application in pharmaceutical and food processing industry.

Specifications

System CPU Intel Dual-Core I5-6200U (2.3GHz)
Memory 2 x SO-DIMM DDR3L-1600(up to 32GB)
Storage 1 x Full-size Mini-PCIe for mSATA SSD
1 x 2.5″ driver bay for SATA3.0 HDD/SSD
Operating System Windows 7/10, Linux
Display Size 15-inch
Resolution 1024 x 768
Brightness 300 cd/m²
Contrast Ratio 600:1
LED Lifetime 30000 hrs
Touchscreen Type Industrial five-wire resistive touch
I/O Serial Port 1 x RS232,  1 x RS232/485
USB Port 4 x USB2.0
Ethernet 2 x GbE LAN
>Others >1 x DC-in
1 x ATX Switch
Expansion Mini-PCIe 1 x Full-size Mini-PCIe for mSATA
1 x Full-size Mini-PCIe
>Power Specification Power Input DC 12V
Consumption 23W(Typ.)
Environment Operating Temperature -10~50°C
Storage Temperature -20~60°C
Relative Humidity 5%-90%,@ 40°C (non-condensing)
IP Protection IP65
Certifications CE, FCC
>Physical Characteristics Material SUS 304
Mounting Mode VESA-mount
Dimension (W x L x H) 406 x 330 x 51 mm
Weight 5.7Kg
       Packing List 1 x SPC-5150
Power Adapter and Cord
External patch cord
1 x Certificate
1 x Warranty Card
