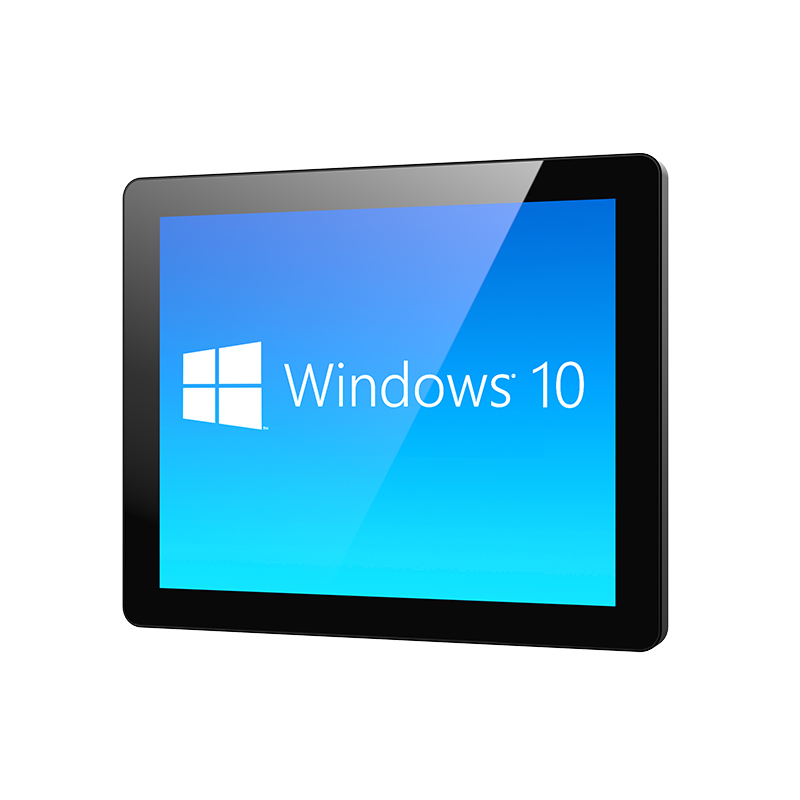

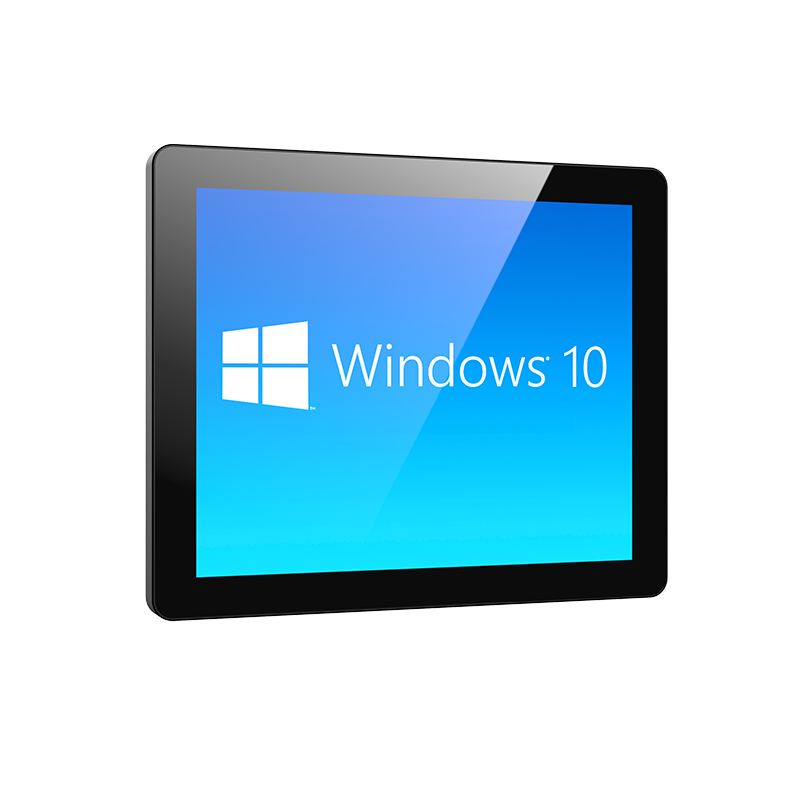

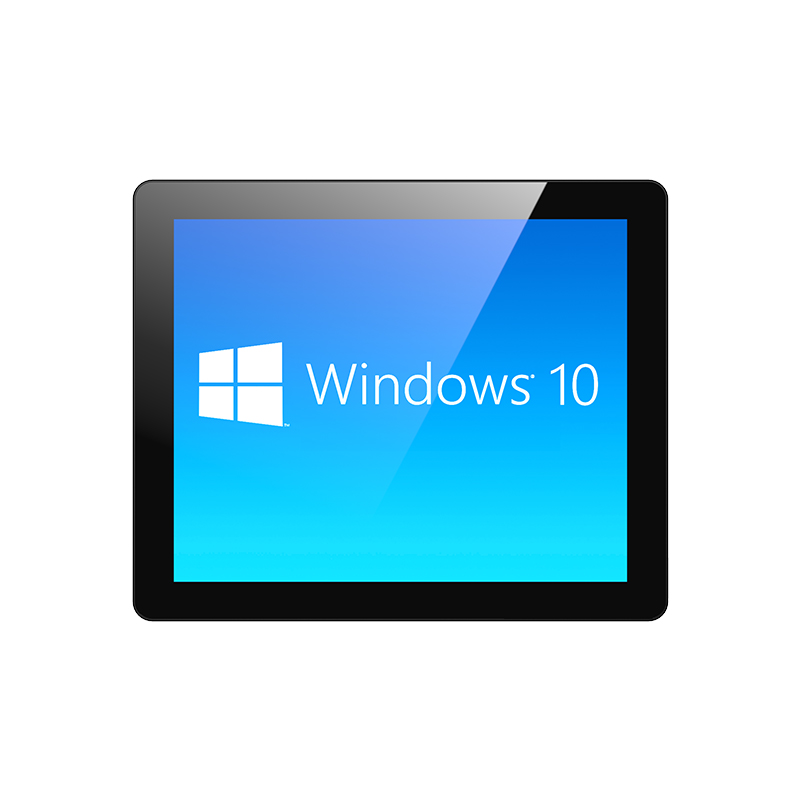

DPC-7150 15″ Intel Whiskey Lake Core I3/I5/I7 Resistive/Capacitive Touch Panel PC
● 15″ LED backlight LCD, capacitive touch screen, resistive touch screen

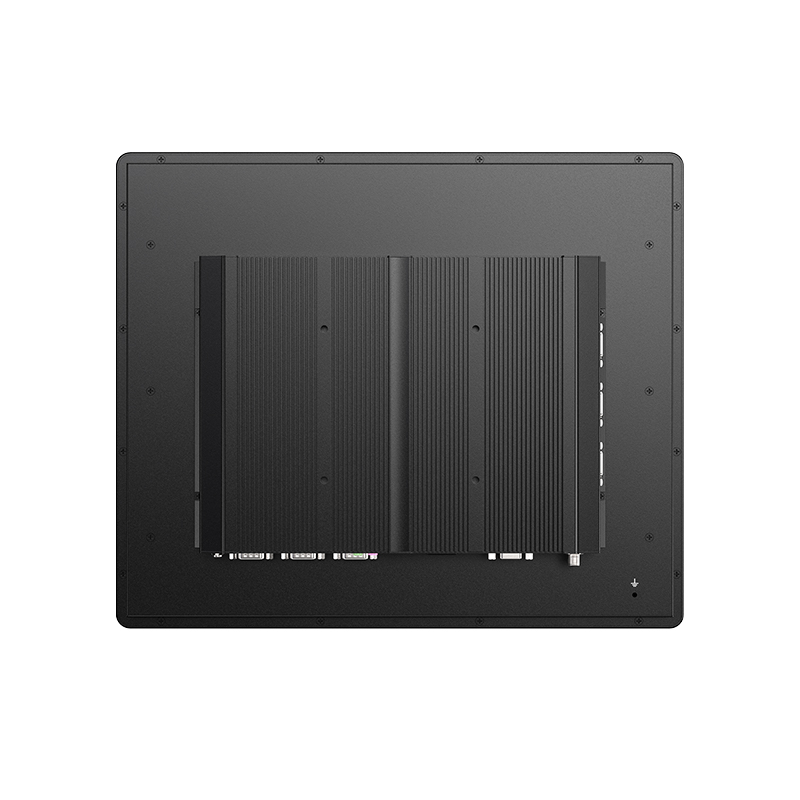

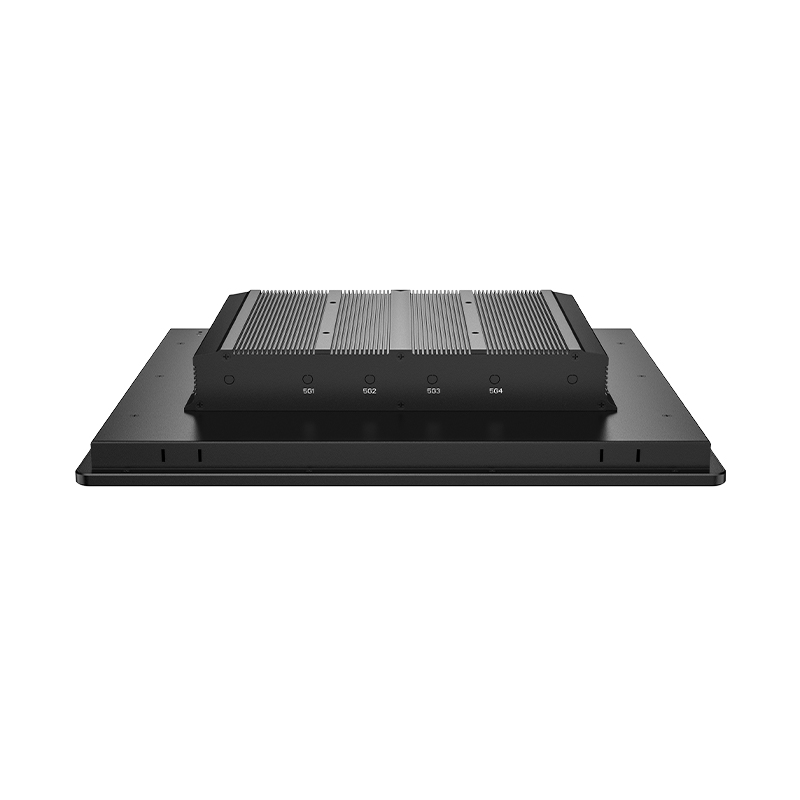

● Fanless design, integral aluminum alloy profile heat dissipation.
● Intel Whiskey Lake Core I3/I5/I7 processor
● 3 COM, 4 USB, 2 GbE, HD Audio, VGA, HDMI
● Support WiFi 6 4G 5G communication
● Panel and VESA mounting
Darveen DPC-7000 series industrial embedded touch screen computer is a compact and durable human-computer interaction platform, which adopts ultra-thin, fanless and shockproof design. 4:3 and 16:9 resistive and capacitive touch screens can be selected to meet various industrial automation applications. DPC-7000 series adopts Intel 8th generation core I3 / i5 / i7 processor and modular motherboard design, with stable system structure and stable industrial application advantages. In addition, the whole series of products adopt aluminum alloy front panel, metal body and overall aluminum alloy profile for heat dissipation, with firm shell and excellent heat dissipation and rust resistance.
▌Specifications
System | CPU | Intel Whiskey Lake-U I3-8145U(2.3GHz)Dual core four threadprocessor/ I5-8265U (1.6GHz) / I7-8565U (1.8GHz) quad core eight thread processor |
Memory | 2 x SO-DIMM DDR4-2400 (UP to 32GB) | |
Storage | 1 x2.5″ Driver Bay for SATA HDD/SSD 1 x Full-size Mini-PCIe for mSATA SSD |
|
Operating System | Windows 8.1/10 | |
Display | Size | 15-inch |
Resolution | 1024 ×768 | |
Viewing Angle | 89/89/89/89 | |
Brightness | 350 cd/m² | |
Backlight | LED | |
LED Lifetime | 50000 hrs | |
VGA | Up to 1920 ×1200@60Hz | |
HDMI | Up to 4096 ×2304@24Hz | |
Multi-Display | Dual display (LVDS + VGA/HDMI) | |
Touch Screen | Type | 5-Wire Analog Resistive Touch /Projected Capacitive Touch |
Transmittance | 80%/87% | |
control interface | USB | |
Surface hardness | ≥3H/≥6H | |

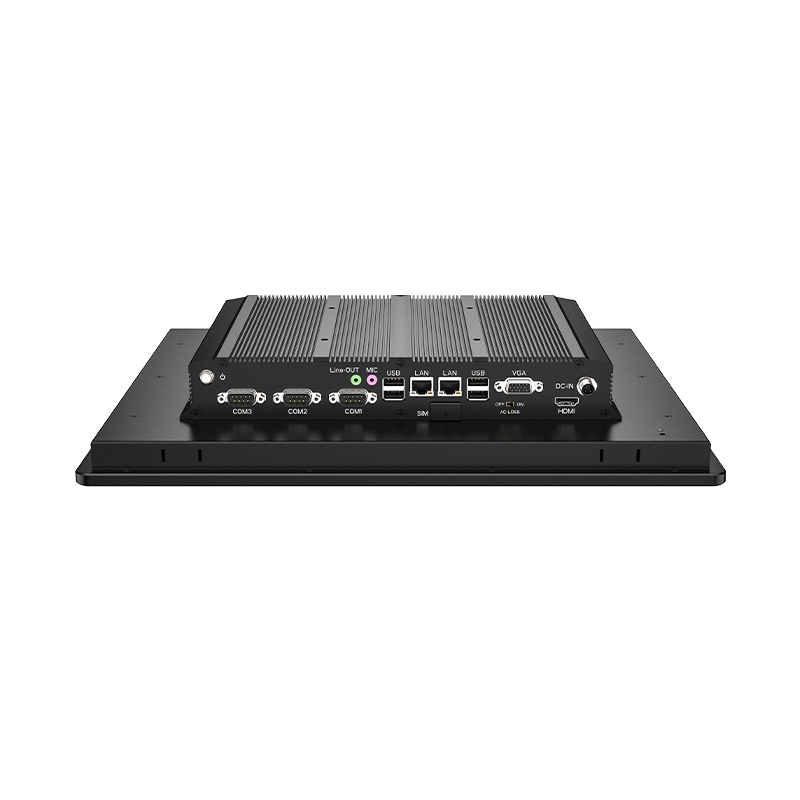

I/O | Serial Port | 3 x RS-232 (COM2/3 support RS-232/422/485) |
USB Port | 2 x USB3.0 2 x USB2.0 |
|
Ethernet | 2 x GbE LAN | |
Display interface | 1 x HDMI ,1 x VGA | |
Others | 1 x DC-IN (3-Pin M8) 1 x Remote Switch Connector 1 x ATX Power Switch 1 x AC LOSS 1 x SIM slot (4G 5G) |
|
Expansion | Mini-PCIe | 1 x Full-size Mini-PCIe for WIFI |
M.2 | M.2 3042 for 4G ; M.2 3052 for 5G ; | |
Audio | Audio | 1 x Line-out 1 x Line-in |
Speaker | 2 Ω5W speaker(Optional) | |
Power | Power Input | 9~36V |
Power Adapter | AC-DC, 12V@7A, 84W | |
Power Consumption | 25W (Typ.) | |
Environment | Operating Temperature | -10~50 |
Storage Temperature | -20~60 | |
Relative Humidity | 10%-90%,@ 40 °C (non-condensing) | |
Vibration | 5~500Hz, 0.026 G ²/Hz, 2.16 Grms, X,Y, Z, 1 hour per axis | |
Certifications | CE, FCC | |
Physical Characteristics | Meterial | Aluminum alloy panel, all-metal structure |
Mounting Mode | Panel-mount, VESA-mount | |
Dimension (W x L x H) | 393x330x66 mm | |
Weight | 4.6Kg | |
Packing List | Packing List | 1 x DPC-7150 |
1 x AC-DC Power Adapter | ||
1 x Certificate | ||
1 x Warranty Card | ||
8 x Panel Mounting Buckles |
