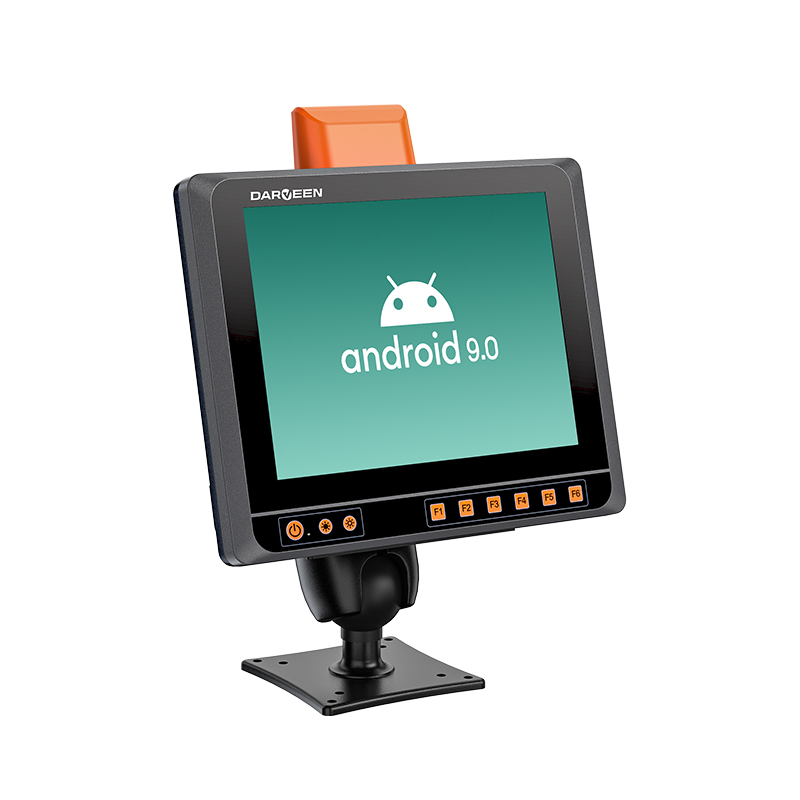

VT-730A 10.4″ARM RK3399 Vehicle Mount Computer

10.4-inch(1024×768) LCD with capacitive touch screen
High-performance 6-core processor, up to 1.8GHz
Front panel intergrated function keys
Rugged aluminum enclosure and fanless design
Full IP65 dust/water protection
Wide range 8-36V DC Power input

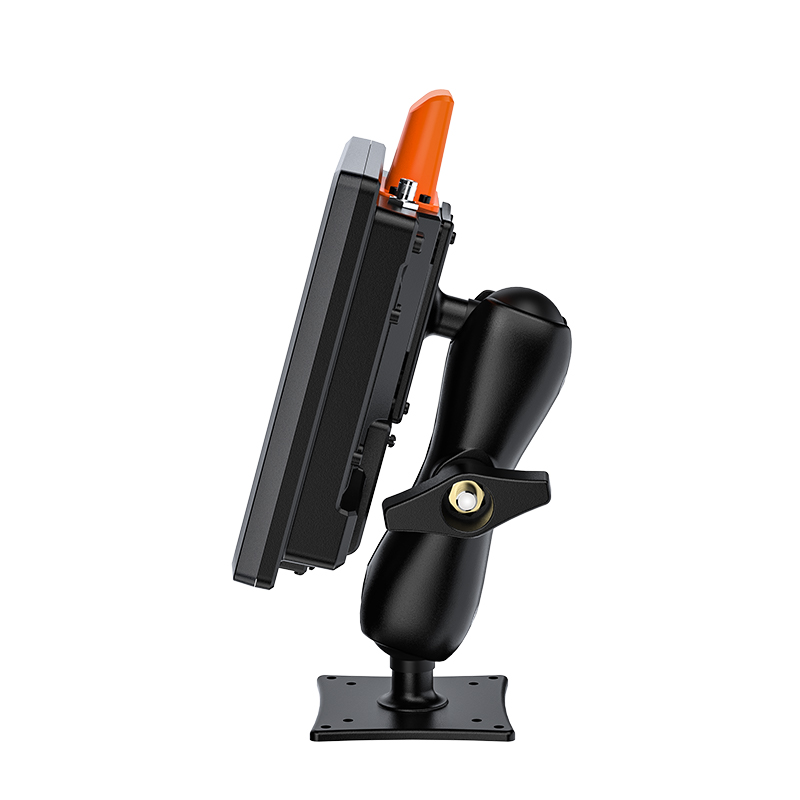

VESA 75 and 100 standard mounting
Flexible expansion capability for WiFi, Bluetooth, LTE, GPS

VT-730A is a 10.4-inch smart vehicle terminal designed for application in container terminal. It could be mounted in container trucks, RTG, OTG and other special vehicles All VT products are fanless design with wide working temperature and wide voltage input. VT-730A is equipped with high-performance 6-core processor, integrated with 10.4-inch high-definition touch screen and optional Wi-Fi, LTE, GPS, Bluetooth and other wireless communication modules to provide real-time communication.

Specifications

System Processor ARM Dual-core A72 + Quad-core A53, up to 1.8GHz
RAM 2GB LPDDR3
Flash Memory 16GB EMMC
Expansion Slot 1 x TF Card, up to 128GB
Operation System Android 7.1.2 / 9.0
Display Size 10.4-Inch
LCD panel Industry Grade
Resolution(H x V) 1024 x 768
Brightness 450cd/
Backlight LED Backlight
Touchscreen Capacitive
Button Button Power on/off, Brightness +/-,
F1-F6 Function
Wireless WLAN 802.11 a/b/g/n/ac (2.4G/5G)
WWAN TDD/FDD LTE
GPS GPS/GLONASS/BeiDou/QZSS/Galileo/SBAS (Optional)
Bluetooth
Bluetooth V4.2
I/O Ports COM Port 1 x RS232
USB 1 x USB3.0
3 x USB2.0
Ethernet 1 x 1000M RJ45
GPIO /
SIM 1 x SIM card slot
Audio Earphone /
Speaker 2 x 8Ω/2W
Power Management Power Input 8~36VDC
ACC /
Power Consumption 10W typ.
/
Environmental Operating Temperature -20℃~ +60
Storage Temperature -30℃~ +70
IP Protection Level IP65
Standard Mounting VESA 75/100
Testing standard MIL-STD 810G
Authentication CE FCC
Mechanical Dimension 280 x 230 x 69 mm
Weight 1.8 Kg
