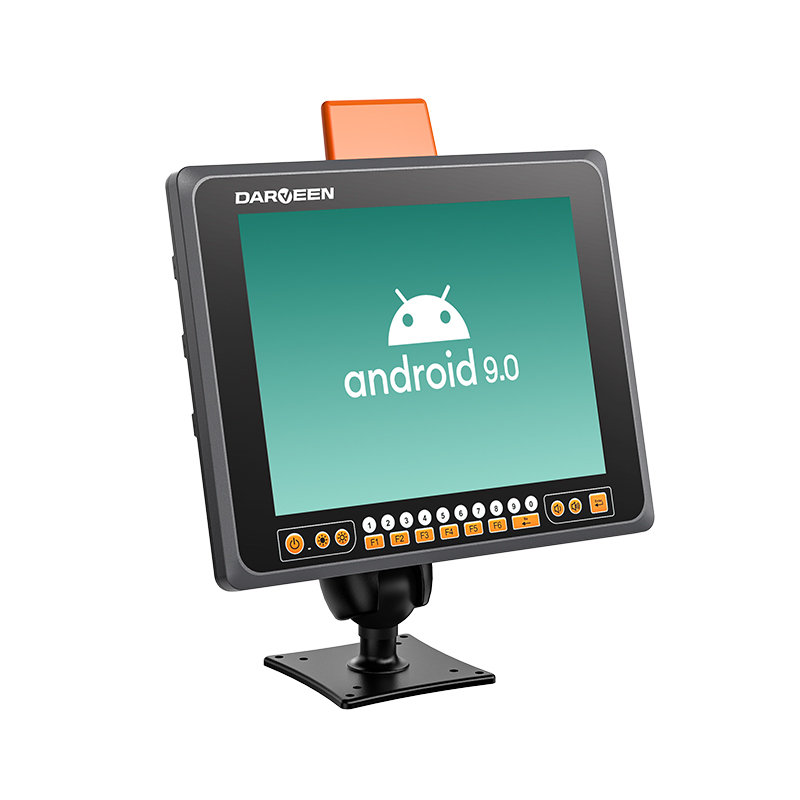

VT-830A 12.1″ ARM RK3399 Vehicle Mount Computer
● 12.1-inch(1024×768) LCD with capacitive touch screen
● High-performance 6-core processor, up to 1.8GHz
● Front panel intergrated numeric and function keys
● Rugged aluminum enclosure and fanless design
● Full IP65 dust/water protection
● Wide range 8-36V DC Power input
● VESA 75 and 100 standard mounting
● Flexible expansion capability for WiFi, Bluetooth, LTE, GPS
VT-830A is a 12.1-inch smart vehicle terminal designed for application in container terminal. It could be mounted in container trucks, RTG, OTG and other special vehicles. All VT products are fanless design with wide working temperature and wide voltage input. VT-830A is equipped with high-performance 6-core processor, integrated with 12.1-inch high-definition touch screen and optional Wi-Fi, LTE, GPS, Bluetooth and other wireless communication modules to provide real-time communication.
▌Specifications
| System | Processor | ARM Dual-core A72 + Quad-core A53, up to 1.8GHz |
| RAM | 2GB LPDDR3 | |
| Flash Memory | 16GB EMMC | |
| Expansion Slot | 1 x TF Card, up to 128GB | |
| Operation System | Android 7.1.2 / 9.0 | |
| Display | Size | 12.1-Inch |
| LCD panel | Industry Grade | |
| Resolution(H x V) | 1024 x 768 | |
| Brightness | 500cd/㎡ | |
| Backlight | LED Backlight | |
| Touchscreen | Capacitive | |
| Button | Button | Power on/off, Brightness +/-, Volume +/- 0-9 Numeric, F1-F6 Function, Enter, Backspace |
| Wireless | WLAN | 802.11 a/b/g/n/ac (2.4G/5G) |
| WWAN | TDD/FDD LTE | |
| GPS | GPS/GLONASS/BeiDou/QZSS/Galileo/SBAS (Optional) | |
| Bluetooth | Bluetooth V4.2 | |
| I/O Ports | COM Port | 1 x RS232 |
| USB | 1 x USB3.0 3 x USB2.0 |
|
| Ethernet | 1 x 1000M RJ45 | |
| GPIO | / | |
| SIM | 1 x SIM card slot | |
| Audio | Earphone | / |
| Speaker | 2 x 8Ω/2W | |
| Power Management | Power Input | 8~36VDC |
| ACC | / | |
| Power Consumption | 12W typ. | |
| / | ||
| Environmental | Operating Temperature | -20℃～ +60℃ |
| Storage Temperature | -30℃～ +70℃ | |
| IP Protection Level | IP65 | |
| Standard Mounting | VESA 75/100 | |
| Testing standard | MIL-STD 810G | |
| Authentication | CE FCC | |
| Mechanical | Dimension | 320 x 260 x 63 mm |
| Weight | 3.6 Kg |
