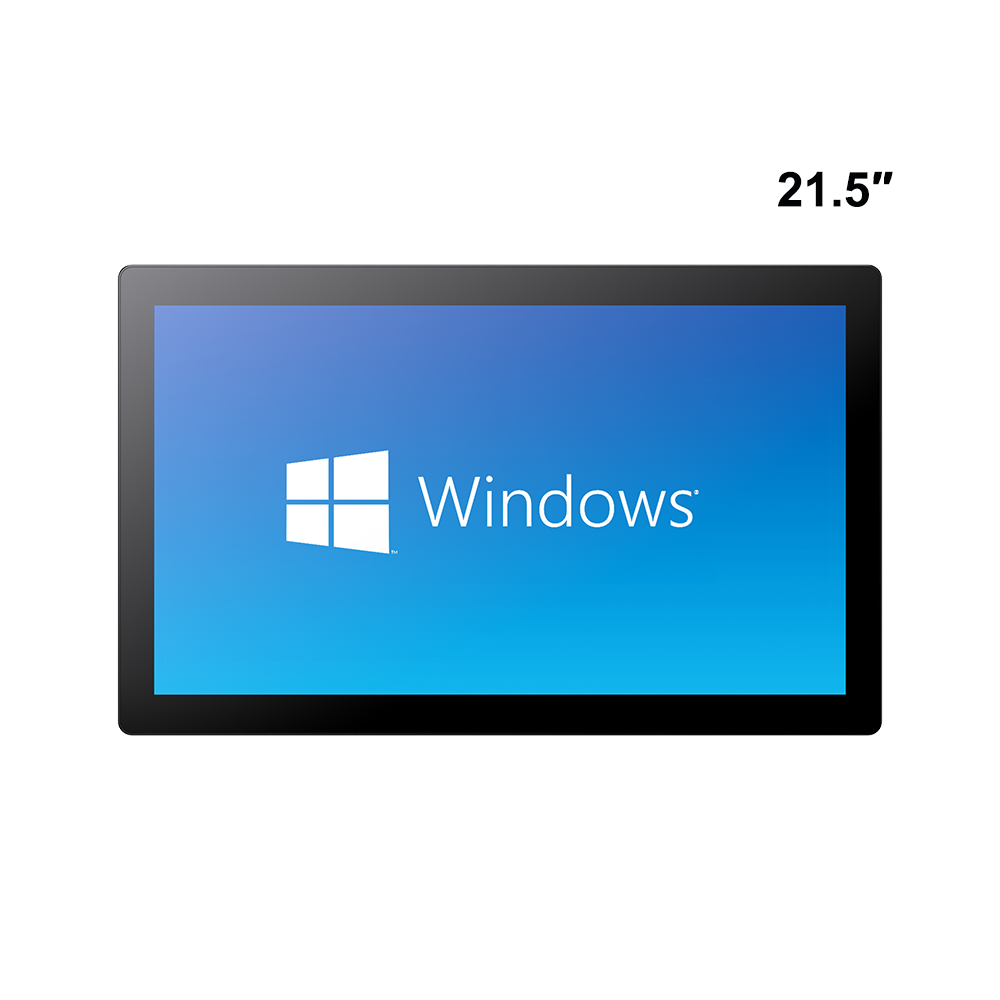

21.5″ DPC-1210 Industrial Panel PC with Intel® Meteor Lake Core™ Ultra 5 125H/U Processor
●21.5″ LED-backlit LCD with projected capacitive touch screen
●AG glass surface treatment

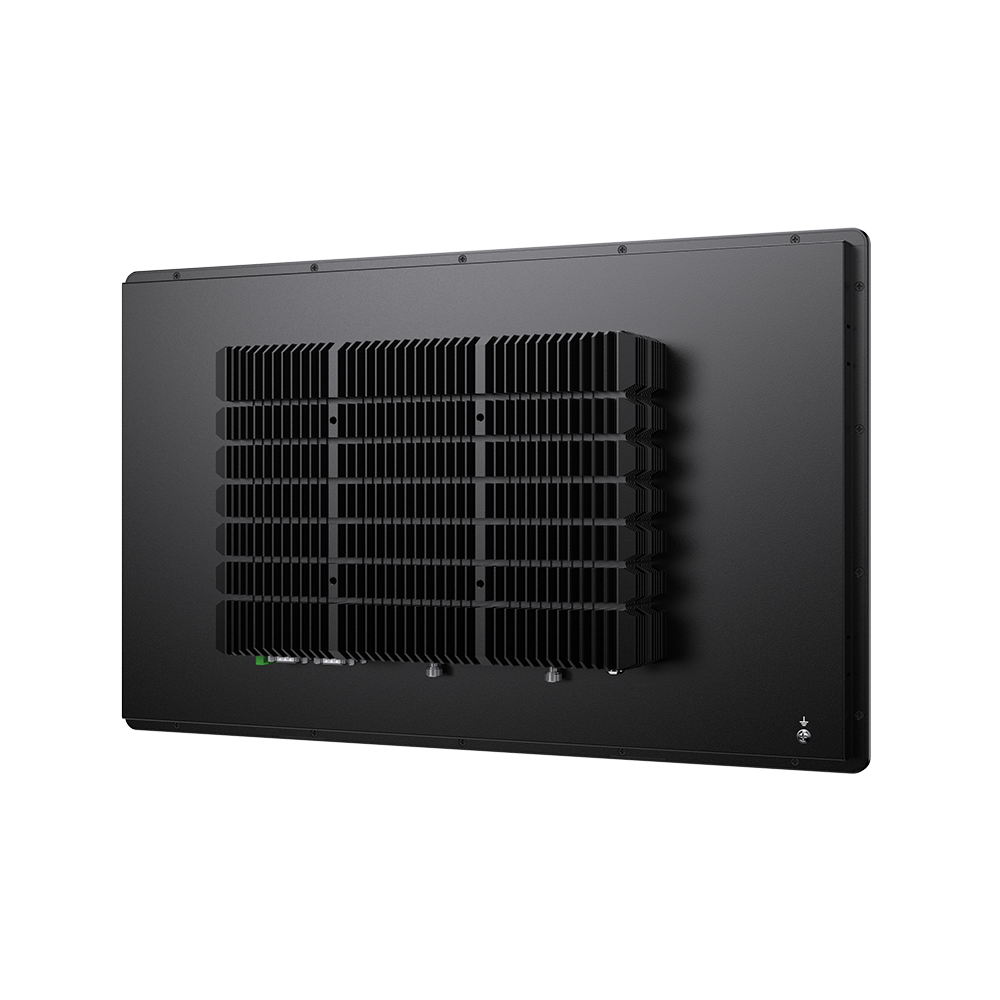

●Rugged aluminum enclosure and fanless design
●Intel® Meteor Lake Core™ Ultra 5 processor
●Built-in NPU with up to 34 TOPS AI performance
●DC 9–36V power input
●Panel mount, VESA mount, and yoke mount installation options
●IP65 compliant front panel
The DPC-1210 is a high-performance fanless touch Panel PC designed for the growing demands of AIoT and smart environments, where real-time data analytics and AI edge inference are increasingly essential. Powered by the Intel® Meteor Lake Core™ Ultra 5 125U/125H processor with a built-in NPU delivering up to 34 TOPS AI performance, it efficiently handles local AI workloads while reducing CPU load and power consumption. With versatile Panel/VESA/yoke mounting options and support for Windows 10/11 and Ubuntu, the DPC-1210 is ideal for factory automation, intelligent recognition, HMI, and self-service AI terminals.
▌Specifications
| Display | ||||
| Size | 21.5 inch | |||
| Touch Type | Projected capacitive multi touch | |||
| Transmitiance | 87% (capacitive) | |||
| Control Interface | USB | |||
| Surface Hardness | ≥7H | |||
| Resolution | 1920 x 1080 | |||
| Luminance | 450 nits | |||
| Contrast Ratio | 1000:1 | |||
| View Angles | 85 (left), 85 (right), 85 (up), 85 (down) | |||
| LED Lifetime | 50,000 hrs | |||
| Color | 16.7 M | |||
| System | ||||
| CPU | Intel® Meteor Lake Core™ Ultra 5 125U 4.3GHz 12-core 14-thread processor, TDP 15W | Intel® Meteor Lake Core™ Ultra 5 125H 4.5GHz14-core 18-thread processor, TDP 28W | ||
| Memory | 2x DDR5 5600 SO-DIMM (up to 64GB) | |||
| Storage | 2x 2.5″ SATA3.0 HDD/SSD with RAID 1 support (Optional) 1x M.2 slot, supporting M.2 2280 NVME PCIe x4 standard SSD |
|||
| BIOS | 128Mb Flash ROM | |||
| TPM | 1x TPM interface, ESPI specification, 2x 6pin | |||
| Watchdog Timer | Supports hardware reset function (256 levels, 0~255 seconds) | |||

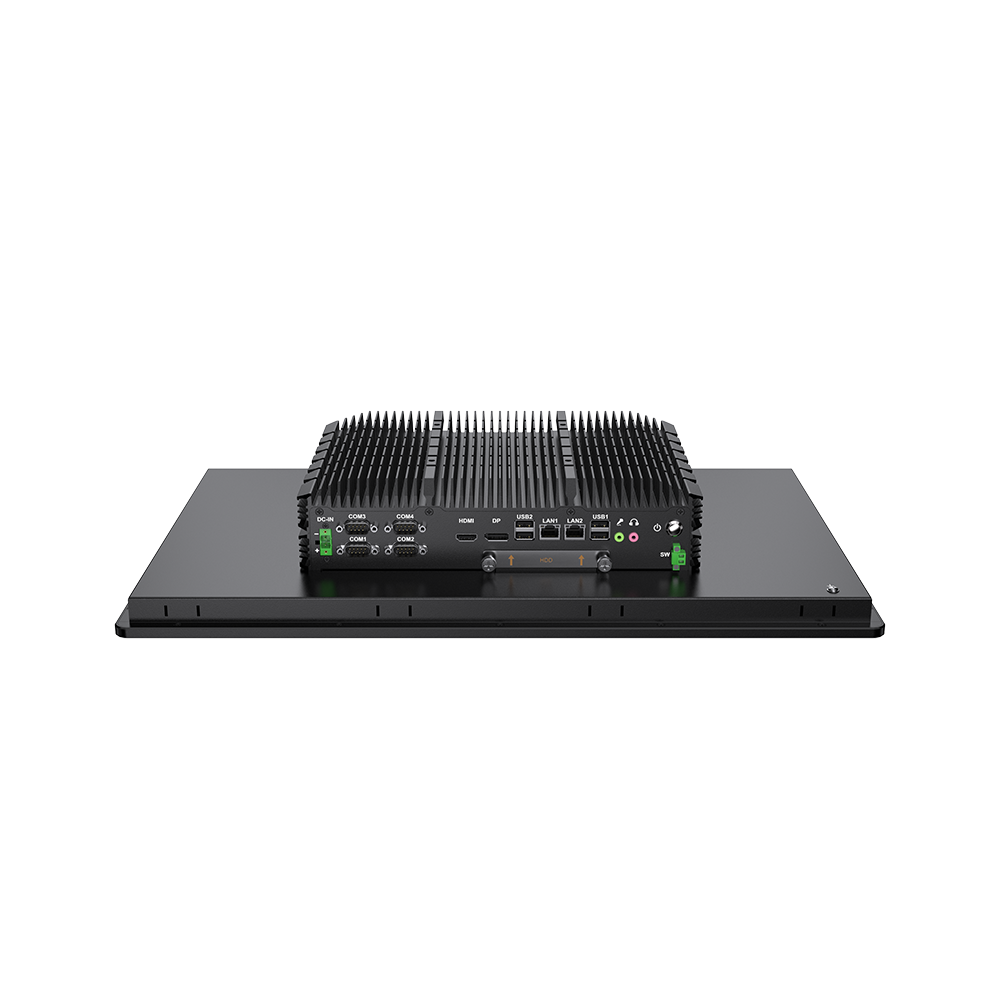

| I/O Ports | ||||
| USB | 4x USB3.0 | |||
| Serial | 2x COM (COM1: RS-232; COM2: RS-232/422/485, default RS-232） | |||
| Ethernet | 2x GbE LAN | |||
| Display | 1x HDMI 1.4. 1x DP 1.2 | |||
| Antenna | 2x SMA antenna holes | |||
| Expansion Slot | ||||
| M.2 | 1x M.2 slot, supporting M.2 Key E 2230 Wi-Fi module | |||
| RF Communication | ||||
| Wi-Fi | M.2 (Optional) | |||
| Cellular | Mini PCIe expansion (Optional) | |||
| Bluetooth | M.2 (Optional) | |||
| Audio | ||||
| Audio | Mic in, line out | |||
| Speaker | 4Ω 3W speaker | |||
| Power | ||||
| Button | 1 x Power button | |||
| Remote Power On/Of | 1x Remote switch | |||
| DC Input | 9 to 36VDC | |||
| Power Connector | 2 pin Phoenix head | |||
| Power Consumption | 35W | |||
| Power Adaptor | AC-DC, 24V@5A, 120W | |||
| Operating System | ||||
| OS | Windows 10, Windows 11, Ubuntu | |||
| Mechanical | ||||
| Dimensions (W x D x H) | 528.4 x 326.2 x 93 mm (20.8 x 12.8 x 3.6 inches) | |||
| Weight (N.W.) | 7.8 kg (17.2 lbs) | |||
| Mounting | Panel mount, wall mount bracket VESA 100 | |||
| Material | Aluminum alloy panel, all-metal chassis | |||
| Environment | ||||
| Operating Temperature | -10 to 50℃ (14 to 122°F) | |||
| Storage Temperature | -20 to 60°C (-4 to 140°F) | |||
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing | |||
| Vibration | 5 to 500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||
| IP Rating | IP65 compliant (for front panel) | |||
| Certification | ||||
| EMC | CE, FCC | |||
| Packing List | ||||
| Packing | 1x DPC-1210 12x Panel mounng buckles 1x Warranty card |
|||
| Processor | Intel Core |
|---|---|
| OS | Linux, Windows |
| Screen Size | 18-22 inch |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Brightness (nits) | 450 nits |
| Wide Temp. | No |
