8″ DPC-9080 Industrial Touch Panel PC with Intel® Celeron® Processor

8″ LED-backlit LCD with capacitive or resistive touch screen
Rugged aluminum enclosure and fanless design
Intel® Celeron® J1900 Processor
Wi-Fi support
VESA 75 mount and panel mount compatibility
IP65 compliant front panel

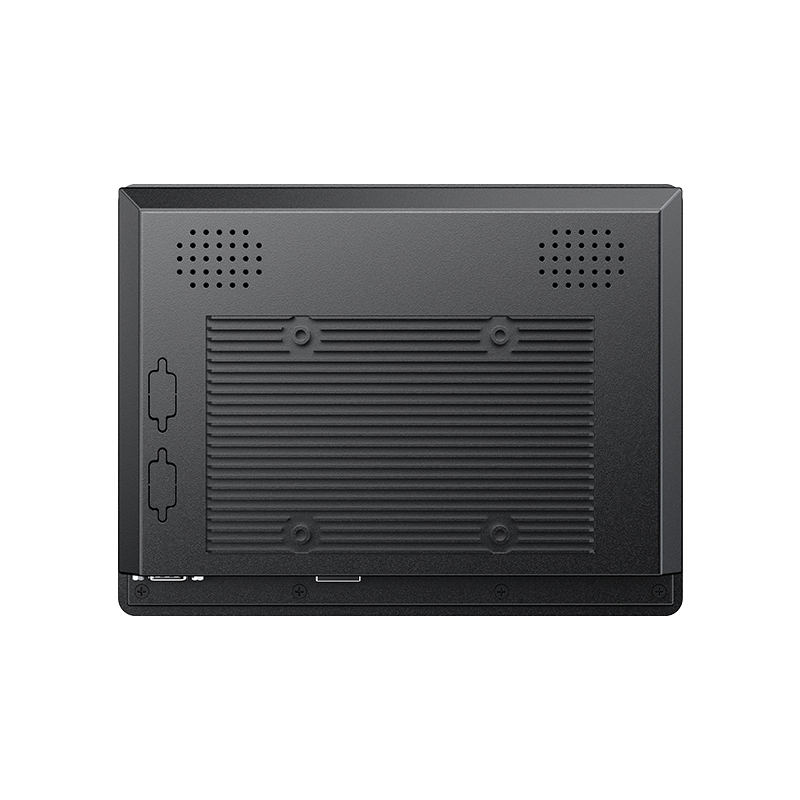

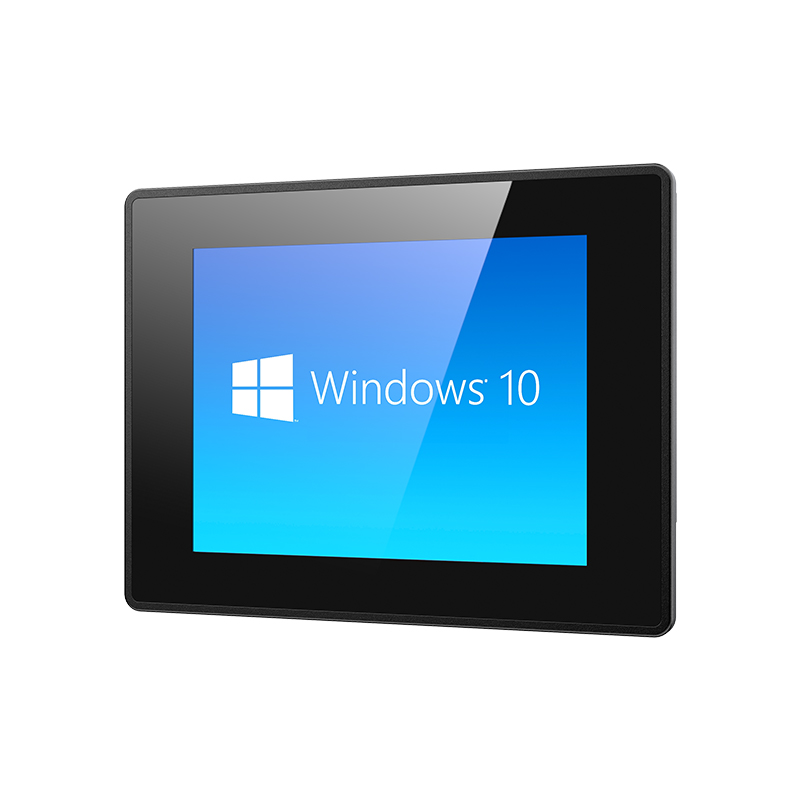

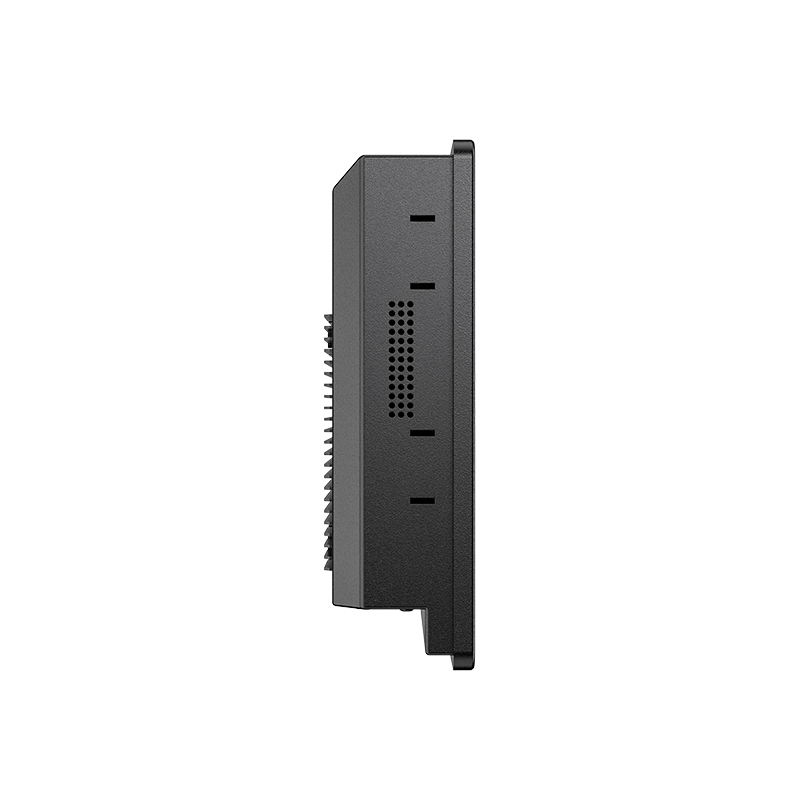

The DPC-9080 series is an 8″ fanless industrial panel PC based on the Intel® Celeron® J1900 processor. It features a modular design to allow easy CPU board or I/O board upgrades to fulfill customer needs. The DPC-9080 series offers low-power consumption, rich I/O connectivity, and Wi-Fi module expansion. It boasts a sleek design with an IP65 aluminum alloy front panel and a durable metal body, offering superior heat dissipation and high reliability for operation in harsh industrial environments. The DPC-9080 series is an excellent HMI platform for industrial applications and factory automation.

Specifications

Display
Size 8 inch
Touch Type 5-wire resistive touch/Projected capacitive multi touch
Transmittance 87% (capacitive) / 80% (resistive)
Resolution 1024 x 768
Luminance 400 nits
Contrast Ratio 1000: 1
View Angles 80 (left), 80 (right), 80 (up), 80 (down)
LED Lifetime 30,000 hrs
Color 16.7M
System
CPU Intel® Celeron® J1900 processor (quad core, 2.0 GHz)
Memory 4GB DDR3L 1333/1600MHz (Onboard)
Storage 1x full length Mini PCIe for mSATA SSD
I/O Ports
USB 1x USB 2.0, 1x USB 3.0
Serial 1x COM (RS-232)
Ethernet 2x GbE LAN
Display 1x HDMI, 1x VGA
Antenna 2x SMA antenna holes
Expansion Slot
Mini PCIe 1x full length Mini PCIe for Wi-Fi
1x full length Mini PCIe for mSATA
RF Communication
Wi-Fi Mini PCIe expansion (optional)
Cellular Mini PCIe expansion (optional)
Bluetooth Mini PCIe expansion (optional)
Audio
Audio Mic in, line out
Speaker 2Ω 5W speaker (optional)
Power
Button Yes
DC Input 12VDC
Power Consumption 15W
Power Connector 2-pin phoenix terminal
Remote Power On/Of 1x Remote switch connector
PowerAdaptor AC-DC, 12V@5A, 60W
Operating System
Windows Windows 7, Windows 10
Mechanical
Dimensions (W x D x H) 227x 173 x 47 mm (8.9 x 6.8 x 1.8 inches)
Weight (N.W.) 1.7 kg (3.7 lbs)
Mounting Mode Panel mount, wall mount bracket VESA 75
Material Aluminum alloy panel, all-metal chassis
Environment
Operating Temperature -10 to 50℃ (14 to 122°F)
Storage Temperature -20 to 60℃ (-4 to 140°F)
Relative Humidity 10% to 95% @ 40°C (104°F), non-condensing
Vibration 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
IP Rating IP65 compliant (I/O interface must be closed)
Certification
EMC CE, FCC
