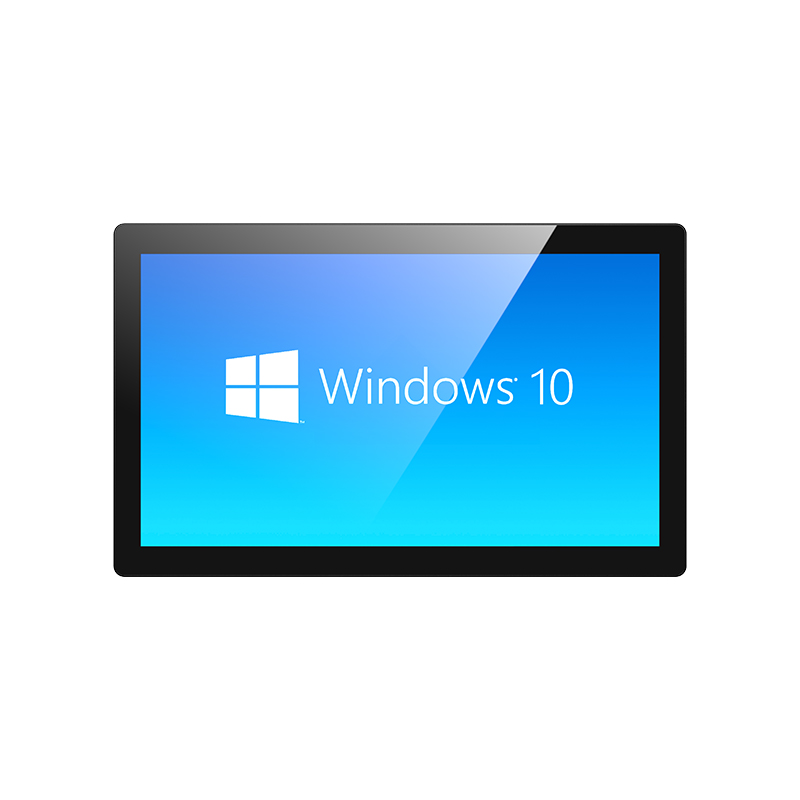

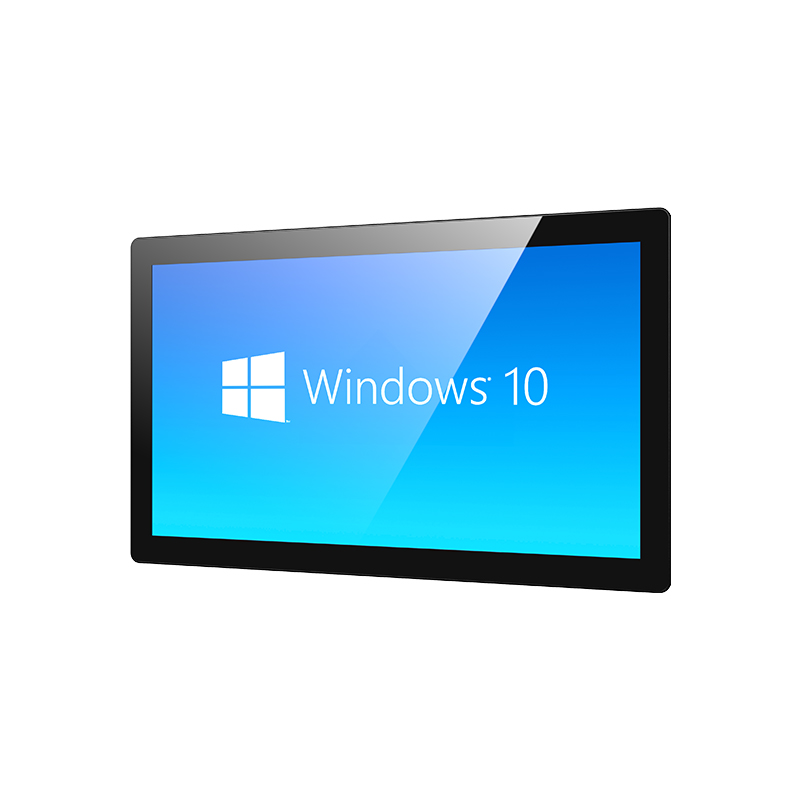

DPM-1210C/DPM-1210R 21.5″ Capacitive/Resistive Industrial Touch Monitor
● 21.5″ LCD Capacitive / Resistive Touch
● Compact structure, IP65 front panel
● All metal structure design, durable
● Support panel and VESA installation
Darveen DPM series industrial touch display adopts modular and all metal structure design, which has good seismic resistance and durability, as well as excellent heat dissipation and rust prevention. With its stable system architecture, daven products have excellent performance in industrial applications. Users can choose 4:3 and 16:9 multi-size display screens to meet various applications of industrial automation.
▌Specifications
Display | size | 21.5-inch |
resolving power | 1920 x 1080 | |
viewing angle | 89/89/89/89 | |
Color Support | 16.7M | |
brightness | 250 cd/m ² | |
contrast ratio | 3000:1 | |
response time | 20/5 (Typ.)(Tr/Td) ms | |
Backlight | LED | |
Backlight life | 40000h | |
Touchscreen | Type | Projection multi touch capacitive touch screen & 5-wire resistive touch screen |
control interface | USB | |
Surface hardness | ≥6H & 3H | |
Transmittance | 85% & 78% | |
I/O | USB | 1 x USB2.0 |
Display | 1 x VGA 1 x DVI 1 x HDMI/DP |
|
Others | 1 x DC-IN (2-Pin Phoenix) | |
Power Specification | Power Input | DC 12~24V |
Power Adapter | AC-DC, 12V@5A, 60W | |
Power Consumption | 19W (Typ.) | |
Environment | Operating Temperature | -10~50 °C |
Storage Temperature | -20~60 ℃ | |
Relative Humidity | 10%-90%,@ 40 °C (non-condensing) | |
Vibration | 5~500Hz, 0.026 G ²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
Certifications | CE, FCC | |
Physical Characteristics | Meterial | Aluminum alloy panel, all-metal structure |
Mounting Mode | Panel-mount, VESA-mount | |
Dimension (W x L x H) | 528.3x 326.1 x 47.3 mm | |
Weight | 6.1Kg | |
Packing List | 1 x DPM-1210 | |
1 x AC-DC power adapter 1 x USB control cable |
||
1 x Certificate | ||
1 x Warranty Card | ||
8 x Panel Mounting Buckles |
