DPM-1080 8″ Capacitive / Resistive Industrial Touch Monitor
● 8″ LED backlight LCD, resistive touch screen
● Compact structure, front panel IP65
● All metal structure design, sturdy and durable
● Support panel installation
Darveen DPM series industrial touch display adopts modular and all metal structure design, which has good seismic resistance and durability, as well as excellent heat dissipation and rust prevention. With its stable system architecture, daven products have excellent performance in industrial applications. Users can choose 4:3 and 16:9 multi-size display screens to meet various applications of industrial automation.
▌Specifications
| Display | Size | 8-inch |
| Resolution | 1024 x 768 | |
| Brightness | 400 cd/m² | |
| Viewing Angle | 80/80/80/80 | |
| Backlight | LED | |
| LED Lifetime | 30000 hrs | |
| Colors | 16.7M | |
| Response time | 20ms | |
| Contrast ratio | 700:1 | |
| Touchscreen | Type | Projection Multi Touch Capacitive Touch Screen 5-wire Resistive Touch Screen |
| Control Interface | USB | |
| Surface hardness | ≥3H/7H | |
| Transparency | >78%/>85% | |

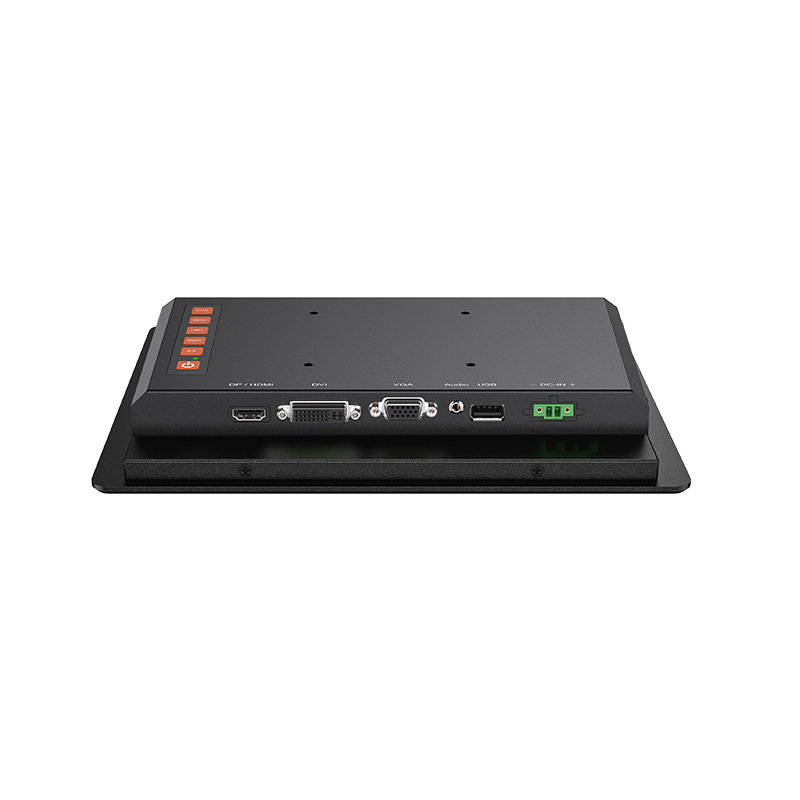

| I/O | USB | 1 x USB2.0 |
| Display input | 1 x VGA 1 x DVI 1 x HDMI/DP |
|
| Other | 1 x DC-IN (2-Pin Phoenix) | |
| Power Specification | Power Input | DC 12~24V |
| Power Adapter | AC-DC, 12V@5A, 60W | |
| Power Consumption | 10W(Typ) | |
| Environment | Operating Temperature | -10~50 °C |
| Storage Temperature | -20~60 ℃ | |
| Relative Humidity | 10%-90%,@ 40 °C (non-condensing) | |
| Vibration | 5~500Hz, 0.026 G ²/Hz, 2.16 Grms, X,Y, Z, 1 hour per axis | |
| Certifications | CE, FCC | |
| Mechanical | Meterial | Aluminum alloy panel, all-metalstructure |
| Mounting Mode | Panel-mount | |
| Dimension (W x L x H) | 226.5 x 173 x 35.5 mm | |
| Weight | 1.5Kg | |
| Packing List | Packing List | 1 x DPM-1080 1 x AC-DC Power Adapter 1 x USB Control Cable 1 x Cable Buckle 1 x Certificate 1 x Warranty Card 8 x Panel Mounting Buckles |
