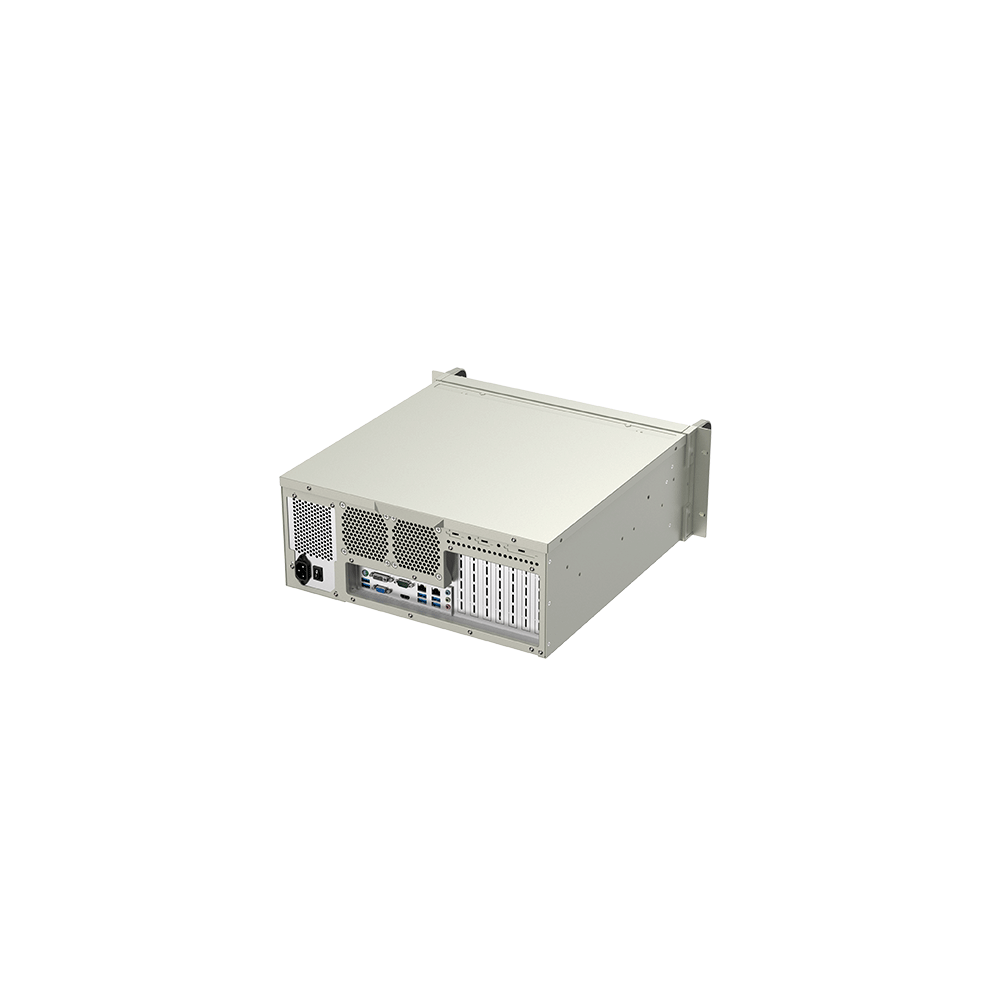

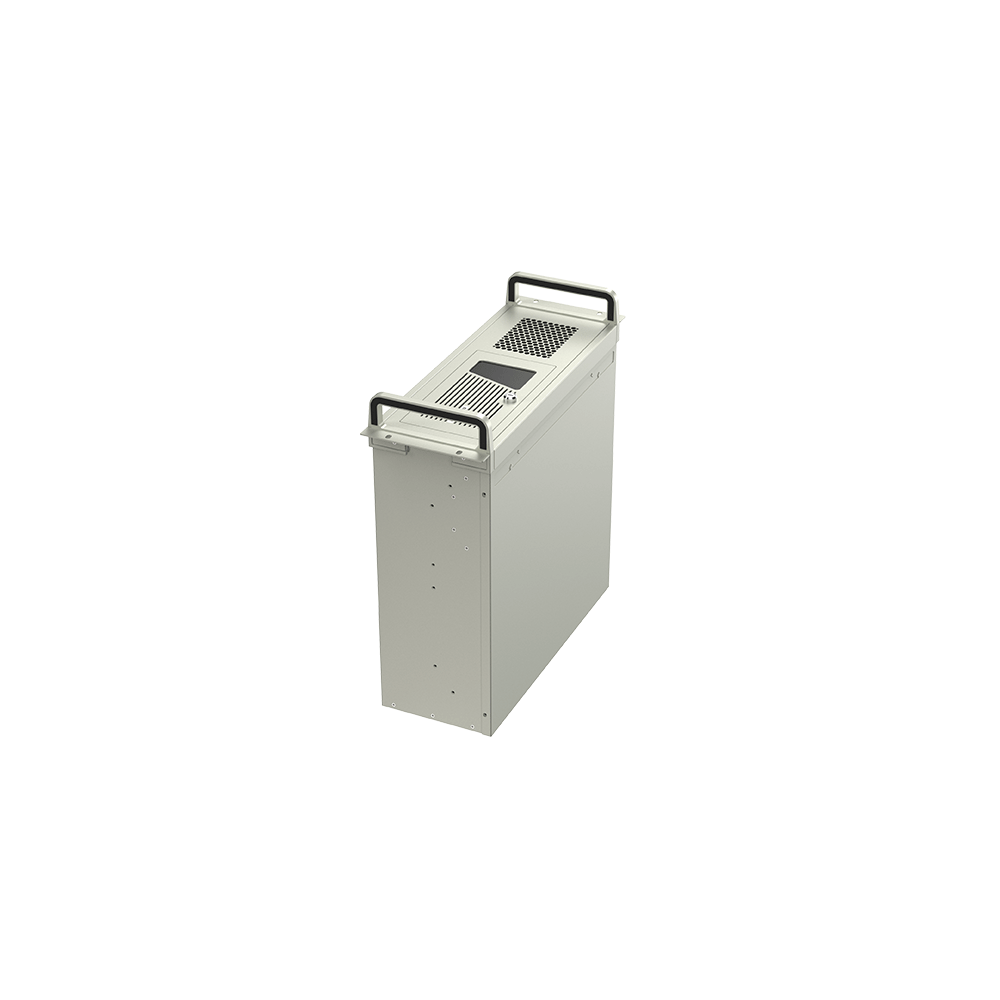

DIC-427-Q670 4U Rack Mount System Supporting Intel® 12/13/14th Generation Core™ i3/i5/i7/i9 CPU
● 4U Rack Mount System Supporting Intel® 12/13/14th Generation Core™ i3/i5/i7/i9 CPU
● Supports Intel® Q670 Chipset
● Supports Intel® 12/13/14th Generation Core™ i3/i5/i7 /i9 CPU TDP 125W MAX
● 2× Intel GbE LAN, 8× USB 3.0, 5× USB 2.0, 6× COM
● 1× VGA, 1× HDMI, 1× DVI
● 2× PCIe x16, 4× PCIe x4, 1× PCI
● Front panel 1 x 12025 fan, rear window 2 x 8025 fan
The Darveen DIC-427-Q670 is a high-performance 4U rack mount system, which can be equipped with Intel® 12/13/14th generation Core™ i3/i5/i7/i9 processors. It has strong performance and can handle it easily. It comes with rich peripheral interfaces, including 2×LAN, 8× USB 3.0, 5× USB 2.0, 6× COM interfaces, etc. At the same time, it supports expansion with 2× PCIe x16, 4× PCIe x4, and 1× PCI slots. The built-in front and rear fan cooling design ensures the machine operates continuously for 24 hours, making it highly favored by users in the industrial application field.
▌Specifications
| System | |
| CPU | Intel® 12/13/14th Generation Core™ i3/i5/i7/i9 CPU LGA1700 |
| CPU TDP | 125W MAX |
| Chipset | Intel® Alder Lake PCH-S, Q670, TDP 6W |
| Memory | DDR4-3200MHz, 4× Non-ECC U-DIMM Slot, Up to 128GB |
| Storage | 8 x 3.5″ disk drive, 2 x 5.25″ optical drive, 1 x 3.5″ floppy drive 1× M.2 Key-M Slot (PCle× 4 GEN4 NVMe/SATA SSD Auto Detect, 2242/2280) |
| TPM | SLB 9670VQ2.0,TPM2.0 (Not onboard by default), Support Intel PTT Default |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) |
| I/O Ports | |
| USB | 6× USB3.0 (Rear lO)/2x USB2.0 (Front IO) 2× USB3.0 (Internal) 1× USB2.0 (vertical TYEP-A, Internal) 2× USB2.0 (Internal) |
| Serial | 1× RS232 ((Rear lO) 3× RS232 (Internal) 1× RS232/RS422/RS485 (Internal) 1× RS232/RS485 (Internal) |
| Ethernet | 1× Intel l219-V/1× Intel l225-V 2.5G |
| Display | 1× DVI-D (DVl-I)/1× HDMI/1× VGA |
| SMBUS | 1× SMBUS Header |
| SATAIII | Supports RST RAID 0,1,5,10, 4× SATA3.0 7P Upright Connector |
| GPIO | 8× GPIO (Internal) |
| PS/2 | PS/2 Connector (Keyboard & Mouse) |
| Expansion Slot | |
| PCI/PCIe | 2× PCI-E 16x Slot (PCle 8X, GEN4) 3× PCI-E 4x Slot (PCle 4X,GEN4) 1× PCI-E 4x Slot (PCle 4x, GEN3) 1× PCI Slot |
| M.2 | 1× M.2 Key-E Slot (PCIE+USB2.0+ CNVi, support WIFI +Bluetooth Module, 2230) |
| Audio | |
| Audio | Realtek Audio HDA Codec 1× Front Audio Header (Line-Out + MIC) 1× SPDIF Out Header 1× Line-out + Line-in + MIC 3.5mm Jack |
| Power | |
| Button | Yes |
| DC Input | Standard ATX power supply |
| Power Mode | AT/ATX |
| Operating System | |
| Windows | Windows10/11 |
| Linux | Ubuntu |
| Mechanical | |
| Dimensions (W x D x H) | 427 x 450 x 177mm (16.81 x 17.72 x 6.97 inches) |
| Weight (N.W.) | 11.3 KG (24.91 lbs) |
| Mounting | Rackmount |
| Environment | |
| Operating Temperature | 0~50℃ (32~122°F) |
| Storage Temperature | -20~60℃ (-4~140°F) |
| Relative Humidity | 10%~95% @ 40°C (104°F), non-condensing |
| Certification | |
| EMC | CE, FCC Class A |
