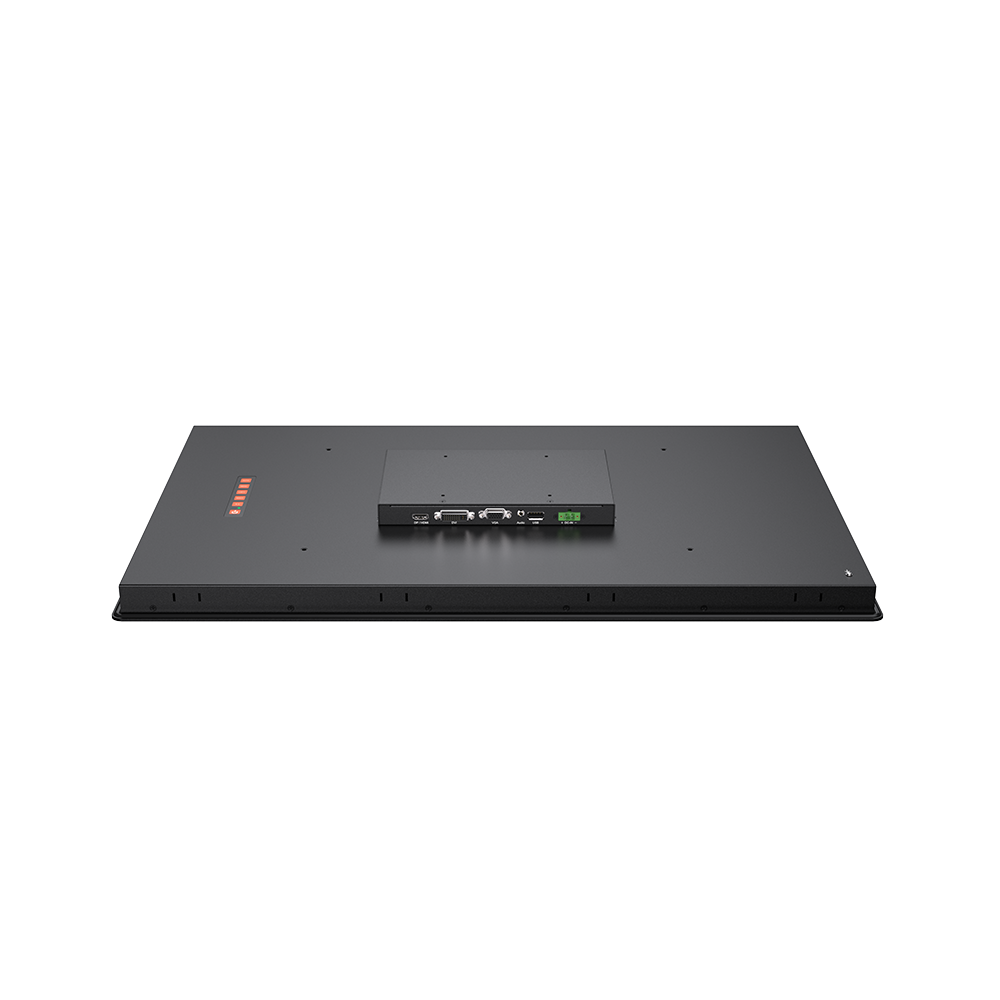

DPM-1270G 27″ High-Brightness, Sunlight-Readable PCAP Touch Monitor
● 1000-nit high-brightness
● Anti-glare (AG) /anti-fingerprint (AF) touchscreen; UV optional
● All-metal structure design for enhanced durability
● Front panel IP65 dustproof and waterproof
● 12–24V DC input
● 1x HDMI, 1x VGA, 1x DVI
The DPM-1270G is a 27-inch, 16:9 high-brightness industrial monitor designed for demanding industrial environments. It features a touchscreen with anti-glare and anti-fingerprint treatment, along with a 1,000-nit sunlight-readable display for clear visibility in bright-light conditions. Built with an all-metal structure, the DPM-1270G offers excellent durability, vibration resistance, and corrosion resistance. With a wide operating temperature range of -20°C to 60°C, it is well suited for factory/production line HMI, outdoor information display, and kiosk applications.
▌Specifications
| Display | |
| Size | 27 inch |
| Resolution | 1920 x 1080 |
| Luminance | 1000 nits |
| Contrast Ratio | 1000: 1 |
| View Angles | 89 (left), 89 (right), 89 (up), 89 (down) |
| LED Lifetime | 40,000 hrs |
| Color | 16.7M |
| Touch | |
| Touch Type | Projected capacitive multi touch |
| Transmittance | 87% (capacitive) |
| Surface Hardness | 7H |
| Control Interface | USB |
| I/O Ports | |
| USB | 1x USB 2.0 |
| Display | 1x HDMI , 1x VGA, 1x DVI |
| Power | |
| Button | Yes |
| DC Input | 12 to 24VDC |
| Power Connector | 2-pin Phoenix terminal |
| Power Consumption | 40W |
| Power Adaptor | AC-DC, 12V@5A, 60W |
| Mechanical | |
| Dimensions (W x D x H) | 674 x 414 x 55.5 mm (26.5 x 16.3 x 2.19 inches) |
| Weight (N.W.) | 10.5 kg (23.15 lbs) |
| Mounting | Wall mount bracket VESA 100 |
| Material | Aluminum alloy panel, all-metal structure |
| Environment | |
| Operating Temperature | -20 to 60℃ (-4 to 158°F) |
| Storage Temperature | -20 to 70℃ (-4 to 158°F) |
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing |
| Vibration | 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Certification | |
| EMC | CE, FCC |
