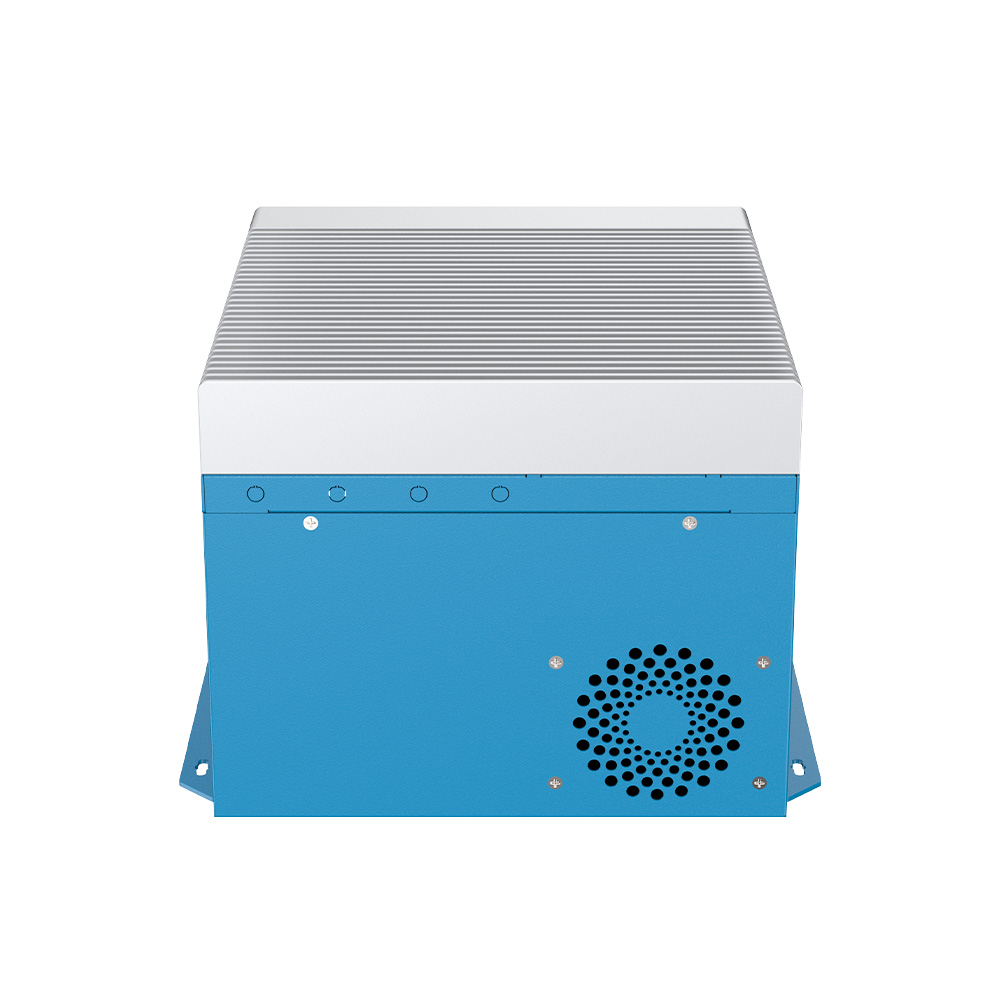

MIC-9022(G) Modular Industrial Computer with 14th–12th Gen Intel® Core™ i7/i5/i3 CPU, 4x PCIe/PCI, 3x LAN, 2x COM, 6x USB
● 14th-12th Gen Intel® Core™ i7/i5/i3 processor
● Up to 4x PCIe/PCI slots
– 1x PCI, 1x PCIe x16 (MIC-9011)
– 2x PCI, 1x PCIe x16, 1x PCIe x4 (MIC-9022)
● GPU card support up to 300W (MIC-9022G)
● 2x COM, 3x GbE LAN, 6x USB
● 1x DP, 1x VGA, 1x HDMI
● 2x M.2 M-Key 2280, 1x M.2 E-Key 2230
● 24V DC power input
The Darveen MIC-9000 Series is a high-performance modular industrial computer powered by the latest 14th–12th Gen Intel® Core™ i7/i5/i3 processors, delivering exceptional computing performance for advanced industrial workloads. The MIC-9000 Series provides rich connectivity with 3 GbE LAN, 2 COM, 6 USB, VGA, HDMI, and DisplayPort interfaces, along with wireless modules including Wi-Fi, 4G LTE, and 5G. To meet diverse application needs, the series offers multiple configurations: MIC-9000 with no expansion, MIC-9011 with 1 PCI and 1 PCIe x16 slots, and MIC-9022 with 2 PCI, 1 PCIe x16, and 1 PCIe x4 slots. In addition, the MIC-9022G can accommodate a GPU card up to 300W to accelerate AI workloads, making it ideal for Industrial IoT, machine vision, and factory automation applications.
▌Specifications
| System | |
| CPU | 14th/13th/12th Gen Intel® Core™ i7/i5/i3 |
| CPU TDP | 65W |
| Chipset | Intel® H610/Q670 |
| Memory | 2x DDR5 SO-DIMM up to 64GB |
| Storage | 2x M.2 2280 SATA (H610) / 2x M.2 2280 RAID 0/1 (Q670) |
| Graphics | Intel® UHD Graphics 770 |
| BIOS | AMI 128Mbit SPI Flash |
| TPM | TPM2.0 (optional) |
| Watchdog Timer | Software programmable supports 256 levels system reset |
| I/O Ports | |
| USB | 2x USB 2.0, 4x USB3.0 (H610) / 6x USB3.0 (Q670) |
| Serial | 2x COM (1x RS-232/485, 1x RS-232) |
| Ethernet | 1x Intel® I219, 2x Intel® I210-AT |
| Display | 1x DP1.4a (up to 4096 x 2304@60Hz), 1x HDMI (up to 4096 x 2160@60Hz), 1x VGA (up to1920 x 1200@60Hz). Supports triple independent displays |
| SIM Card Slot | 1x SIM |
| Antenna | 6x SMA-type |
| CAN bus | 2x CAN 2.0B (optional, share with M.2 2230) |
| Expansion Slot | |
| PCI/PCIe | 2x PCI, 1x PCIe x16, 1x PCIex4 (x2 signal) Supports a GPU card up to 300W (MIC-9022G) |
| M.2 | 2x M.2 M-Key 2280,1x M.2 E-Key 2230,1x M.2 B-Key 3042/3052 (share with M.2 2280) |
| RF Communication | |
| Wi-Fi | 1x M.2 2230 E-Key |
| Cellular | 1x M.2 3042/3052 B-Key |
| Bluetooth | 1x M.2 2230 E-Key |
| GNSS | 1x M.2 3042/3052 B-Key |
| Audio | |
| Audio | Mic in, line out |
| Power | |
| Button | YES |
| Remote Power On/Off | 2-Pin remote |
| DC Input | 24VDC |
| Power Adaptor | AC-DC, 24V@7.5A, 180W(for MIC-9022) 24V 20A480W (for MIC-9022G GPU expansion) |
| Power Mode | AT/ATX |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Ubuntu |
| Mechanical | |
| Dimensions (WxDxH) | 220 x 256 x 176mm (8.66 x 10.08 x 6.93 inches) |
| Weight (N.W.) | 5.6kg (12.35 lbs) |
| Mounting | Wall-mount |
| Material | Aluminum alloy |
| Environment | |
| Operating Temperature | -10 to 50℃ (14°F to 122°F, with SSD Airflow 0.7m/s) |
| Storage Temperature | -40 to 80℃ (-40°F to 176°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | |
| EMC | CE, FCC, Class A |
