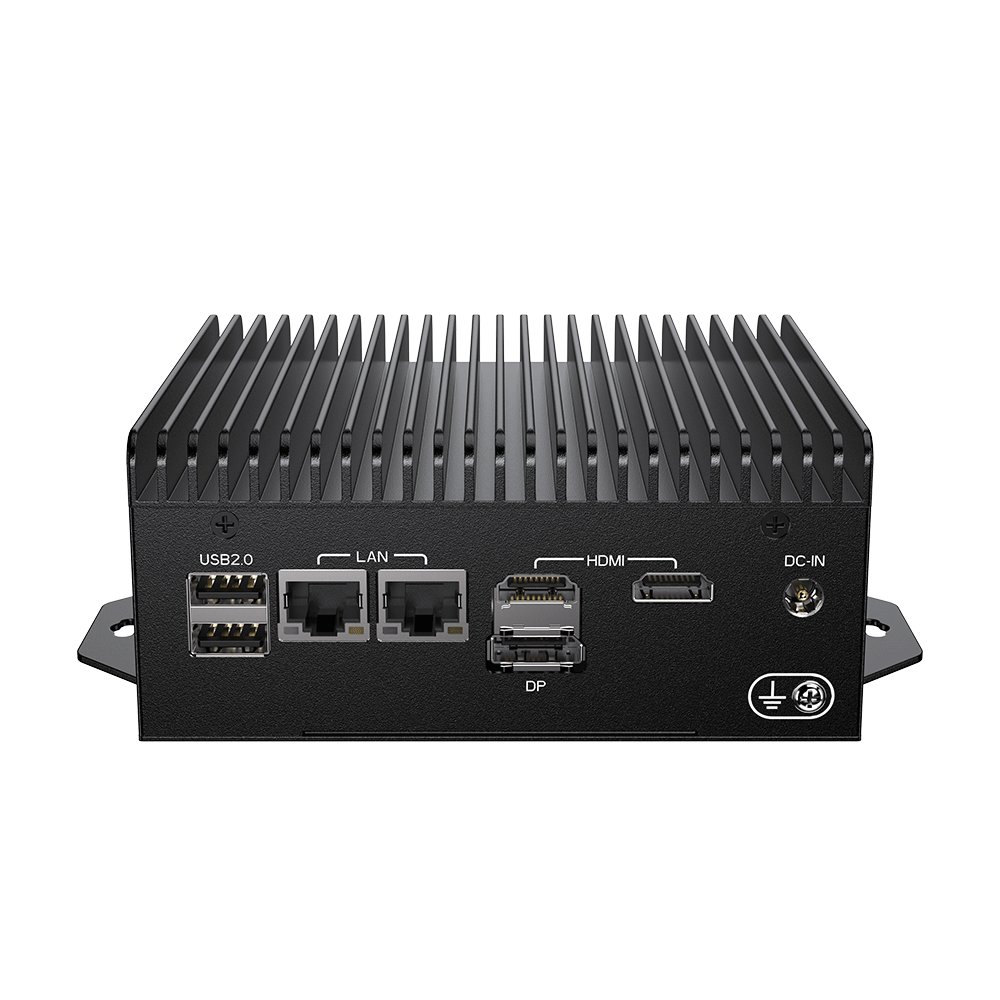

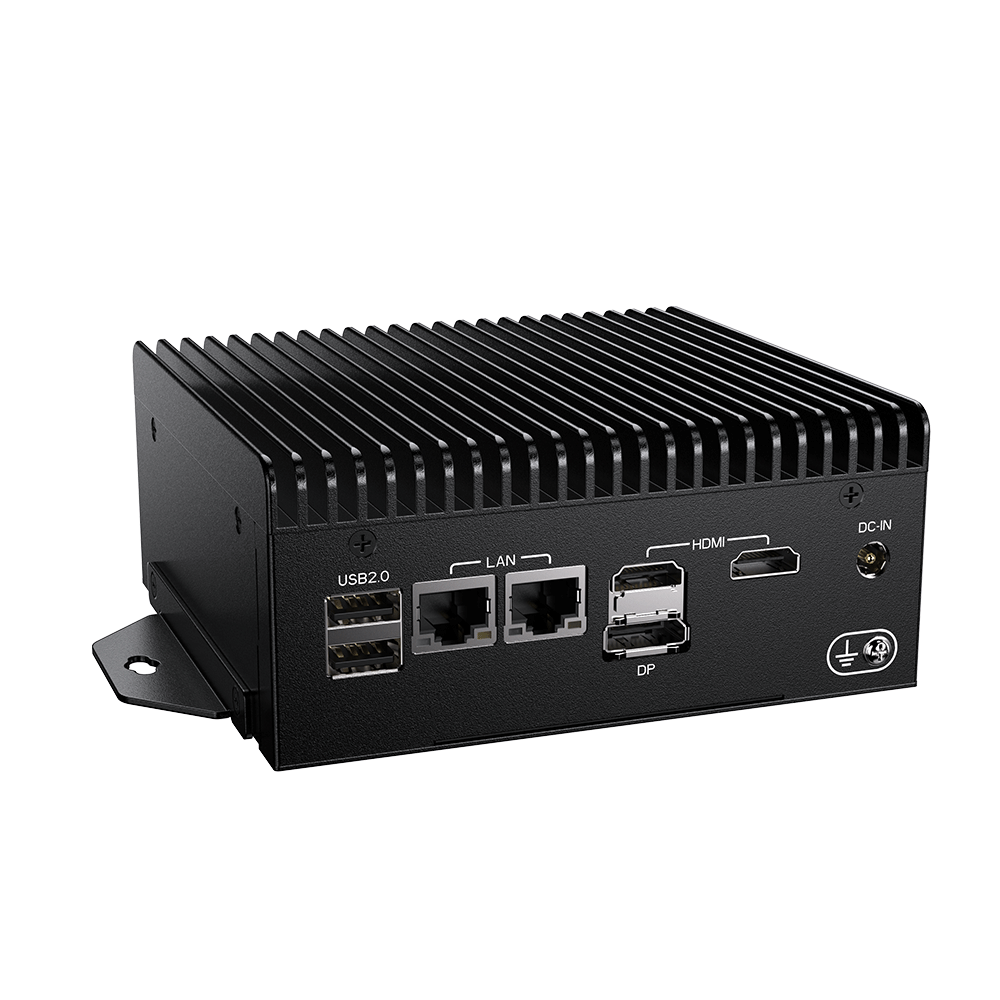

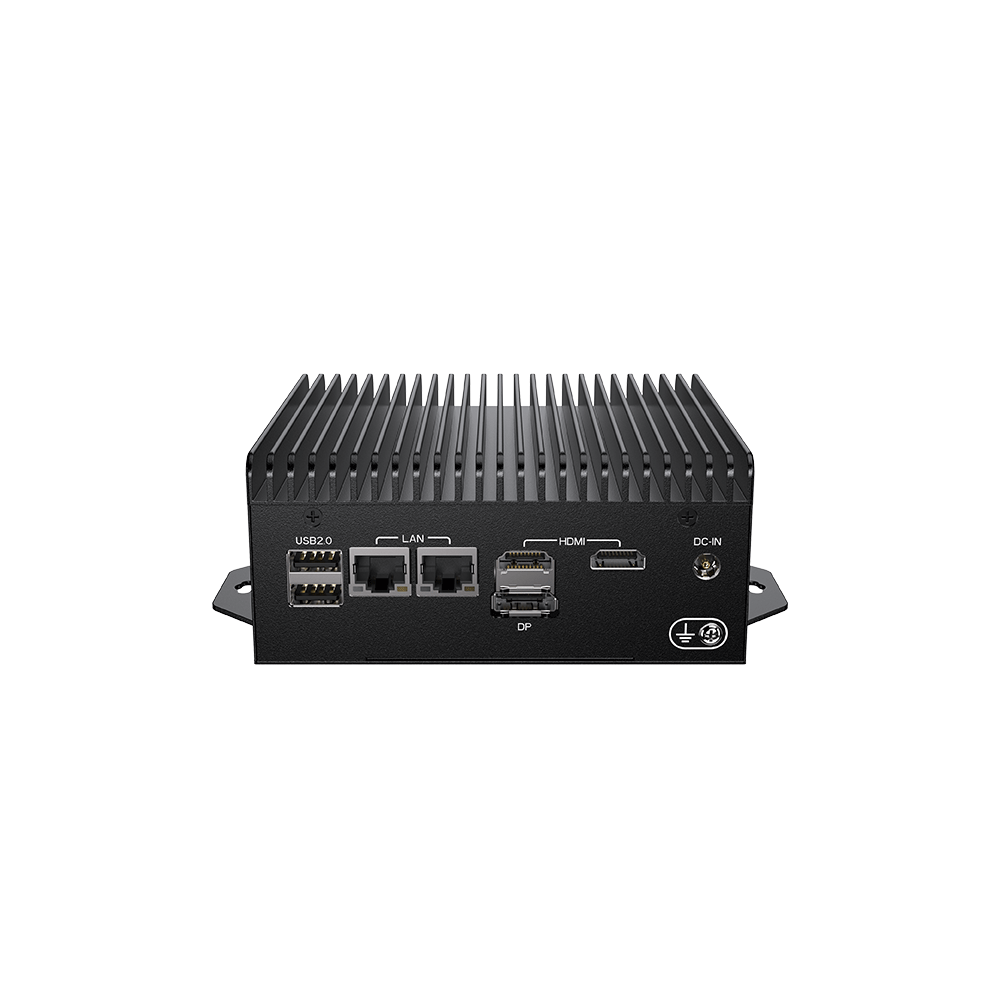

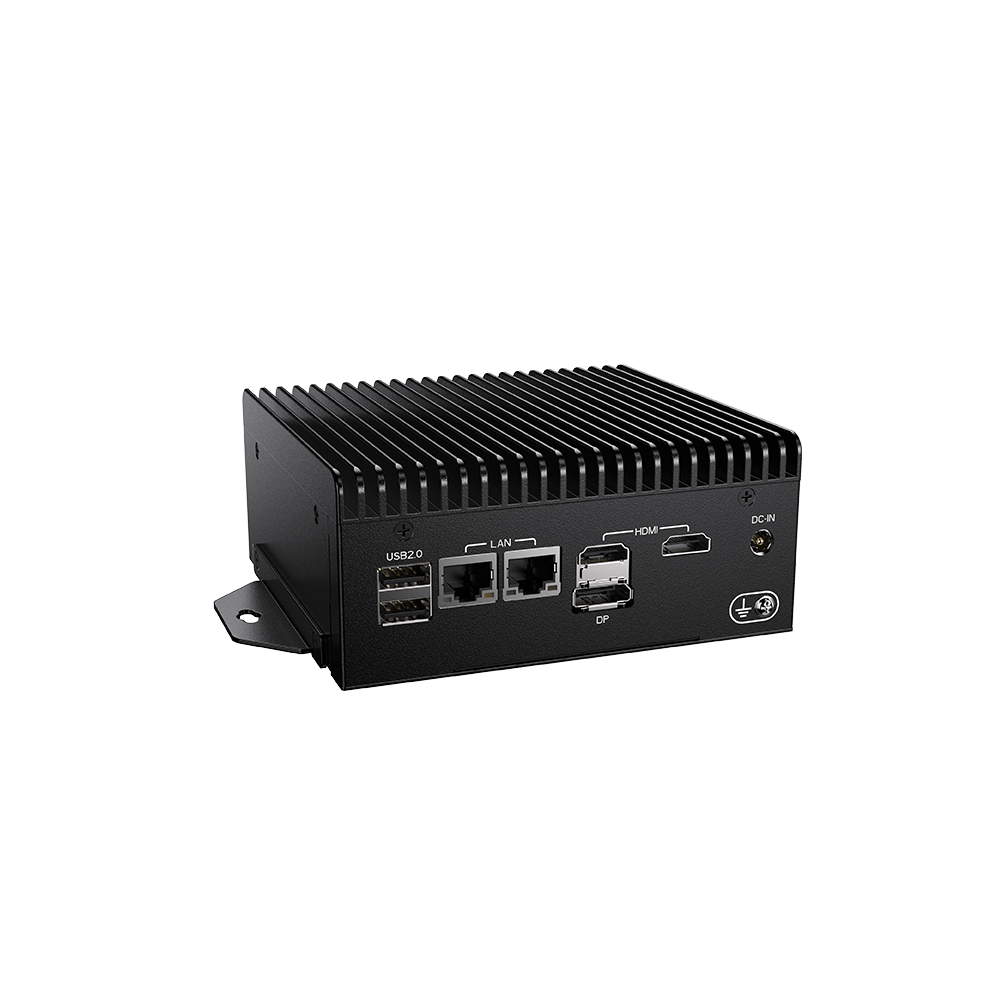

NBC-1120-N100 Fanless embedded computer Intel® Alder Lake-N N100 Processor
● Intel® Alder Lake-N N100 Processor
● 2x GigaLAN, 6x USB, 2x COM (2x RS-232/485)
● 2x HDMI, 1x DP
● 1x Full length Mini PCIe and 1 x M.2 2230 for wireless connectivity
● 1x M.2 2280 SATA, 1x 2.5″ SATA HDD
● 12V DC-IN
The Darveen NBC-1120-N100 is a compact, fanless embedded computer powered by the Intel® Alder Lake-N N100 processor, designed for ultra-low power applications. It supports dual 4K displays via 2x HDMI 2.0 ports. Despite its small size, it offers versatile I/O options to support IoT edge data collection. Built for industrial use, it features flexible expansion capabilities, extended temperature range, and rugged design. With support for 4G LTE, Wi-Fi 6, and an internal SIM slot, it’s ideal for outdoor IoT, kiosks, and remote monitoring.
▌Specifications
| System | ||||
| CPU | Intel® Alder Lake-N N100 | |||
| CPU TDP | 6 W | |||
| Memory | 1x DDR4 3200 MHz SO-DIMM up to 16GB | |||
| Storage | 1x 2.5″ SATA HDD 1 x M.2 M-Key 2280 SATA |
|||
| BIOS | AMI UEFI | |||
| TPM | BIOS | |||
| Watchdog Timer | Software Programmable supports 256 levels system reset | |||
| I/O Ports | ||||
| USB | 2x USB 2.0, 4x USB 3.0 (1x TYPE-C) | |||
| Serial | 2x COM (2x RS-232/485) | |||
| Ethernet | 2x RJ45 GbE Intel® I226-V | |||
| Display | 2x HDMI, 1x DP | |||
| SIM Card Slot | 1x Internal SIM card slot | |||
| Antenna | 2x SMA Antenna Holes | |||
| Expansion Slot | ||||
| Mini PCIe | 1x Full length mini PCIe | |||
| M.2 | 1x M.2 E-Key 2230 1 x M.2 M-Key 2280 SATA |
|||
| RF Communication | ||||
| Wi-Fi | Wi-Fi 6 (M.2 2230) | |||
| Cellular | 4G-LTE (Mini PCIe) | |||
| Bluetooth | Bluetooth 5.0 (M.2 2230) | |||
| GNSS | GPS/Glonass/BeiDou (Mini PCIe) | |||
| Audio | ||||
| Audio | Mic in, line out | |||
| Power | ||||
| Button | Yes | |||
| Remote Power On/Off | NA | |||
| Battery | NA | |||
| Power Mode | AT/ATX | |||
| DC Input | 12VDC | |||
| Operating System | ||||
| Windows | Windows 10/11 | |||
| Linux | Ubuntu | |||
| Mechanical | ||||
| Dimensions (W x D x H) | 135x 127x 59mm (5.32 x 5 x 2.32 inches) | |||
| Weight (N.W.) | 1kg (2.2 lbs) | |||
| Mounting | Wall mount | |||
| Material | Aluminum alloy | |||
| Environment | ||||
| Operating Temperature | -10℃ to 60℃ (14℉ to 140°F, with SSD Airflow 0.7m/s) | |||
| Storage Temperature | -20℃ to 60℃ (-4℉ to 140°F) | |||
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing | |||
| Certification | ||||
| EMC | CE, FCC Class A | |||
