RPC-3150 15″ Intel Celeron J1900 Resistive Touch Panel PC

15″ LED backlight LCD and Resistive touch panel
Fanless design, Full protection IP65
Embedded Intel Celeron J1900(2.0GHz) processor
3COM, 2USB, 2 GbE
VESA mounting

RPC-3150 15″ industrial grade full protective resistance touch screen integrated machine is a solid and durable human-computer interaction platform, which adopts modular, fan-free and shockproof design, full body dust-proof and waterproof design, reaching IP65 protection level. 4:3 and 16:9 multi-size display screens can be selected, and M12 I / O interface design can cope with severe application environment.
RPC-3150 15″ J1900 Resistive Touch tablet computer adopts low-power processor, with its stable system architecture, it has excellent performance in industrial applications. In addition, the whole series of products are made of aluminum alloy front panel and metal body material, with excellent heat dissipation and rust resistance.

Specifications

System CPU Intel Quad-Core Celeron J1900 (2.0GHz)
Memory 4GB SO-DIMM DDR3L-1333/1600 (Up to 8GB)
Storage 1 x 2.5″ Driver Bay for SATA HDD/SSD
1 x Full-size Mini-PCIe for mSATA SSD
Operating System Windows 7/8.1/10
Display Size 15-inch
Resolution 1024 x 768
Viewing Angle 89/89/89/89
Brightness 350 cd/m2
Backlight LED
LED Lifetime 50000 hrs
Touch Screen Type 5-Wire Analog Resistive Touch
Transparency 80%
Clicking Life 35 million times
Surface hardness ≥3H

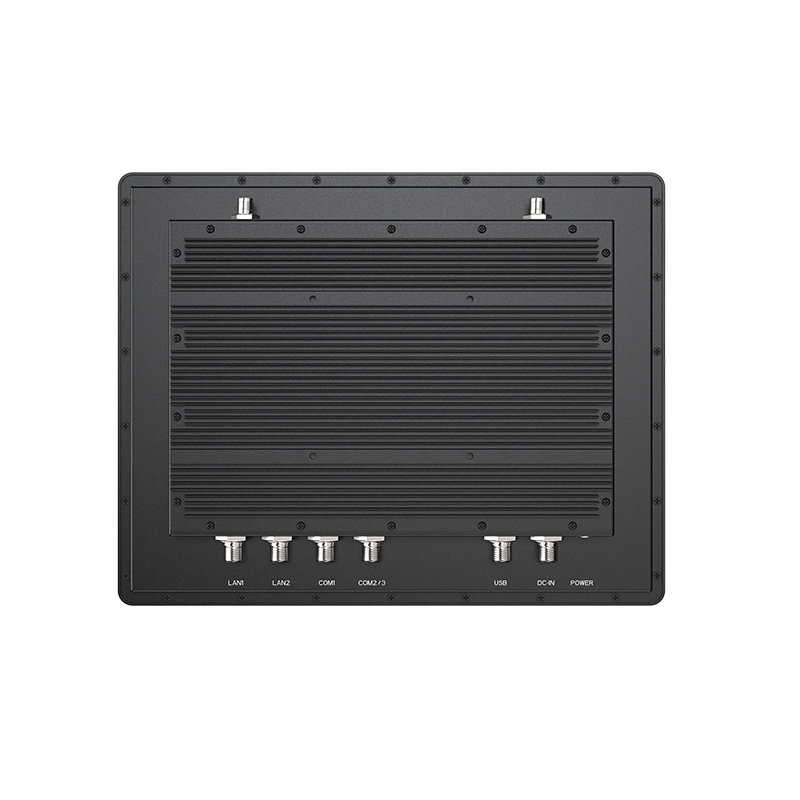

I/O Serial Port 3 x RS-232 (M12)
USB Port 2 x USB2.0 (M12)
Ethernet 2 x GbE LAN(M12)
Others 1 x DC-IN (M12)
1 x ATX Power Switch
Expansion Mini-PCIe 1 x Full-size Mini-PCIe for mSATA
1 x Full-size Mini-PCIe
Power Power Input DC 12V
Power Adapter AC-DC, 12V@5A, 60W
Power Consumption 25W(Typ.)
Environment Operating Temperature -10~50°C
Storage Temperature -20~60°C
Relative Humidity 10%-90%,@ 40 °C (non-condensing)
Vibration 5~500Hz, 0.026 G 2/Hz, 2.16 Grms, X,Y, Z, 1 hour per axis
Certifications CE, FCC
Physical Characteristics Meterial Aluminum alloy panel, all-metal structure
Mounting Mode  VESA-mount
Dimension (W x L x H) 366 x 290 x 64 mm
Weight 5.4Kg
Packing List Packing List 1 x RPC-3150
1 x AC-DC Power Adapter
1 x Certificate
1 x Warranty Card
8 x Panel Mounting Buckles
