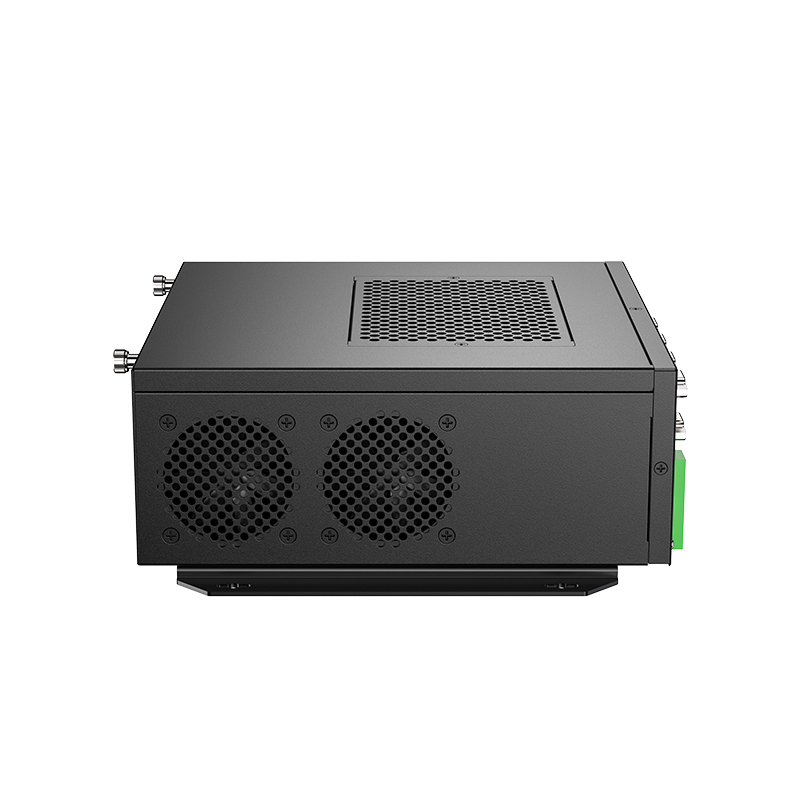

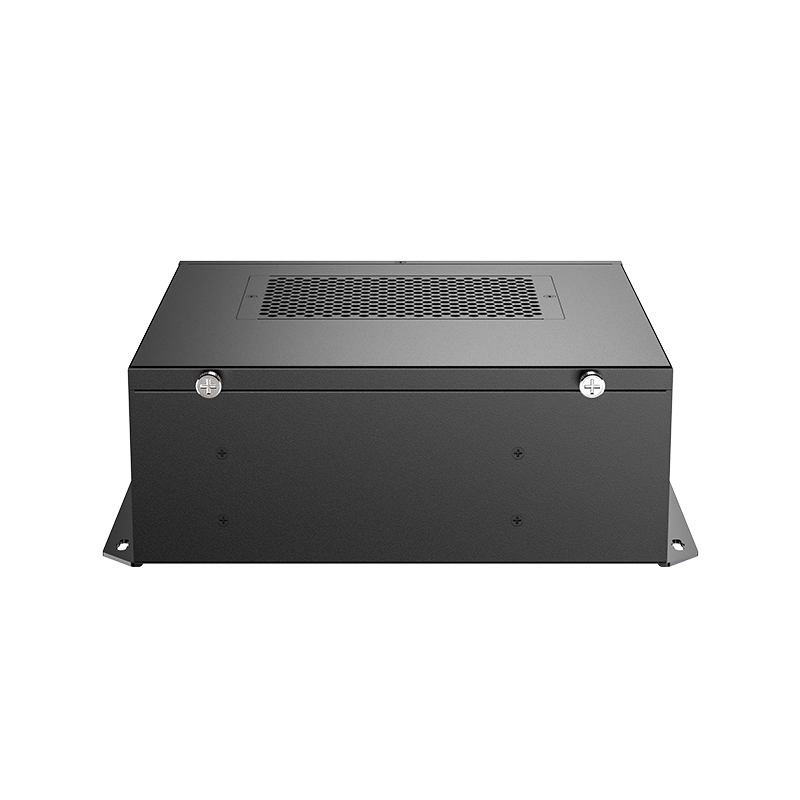

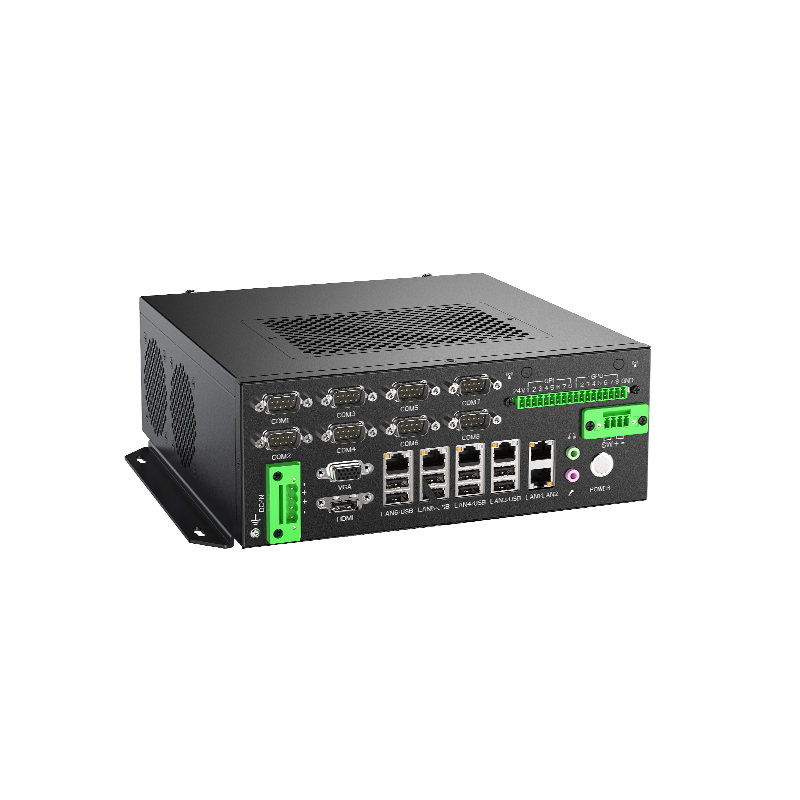

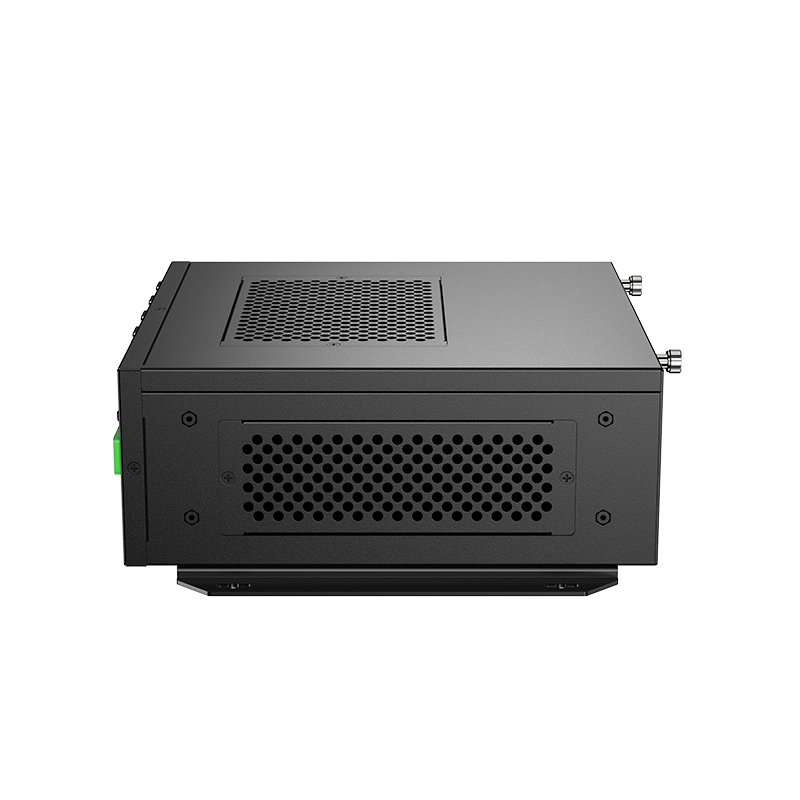

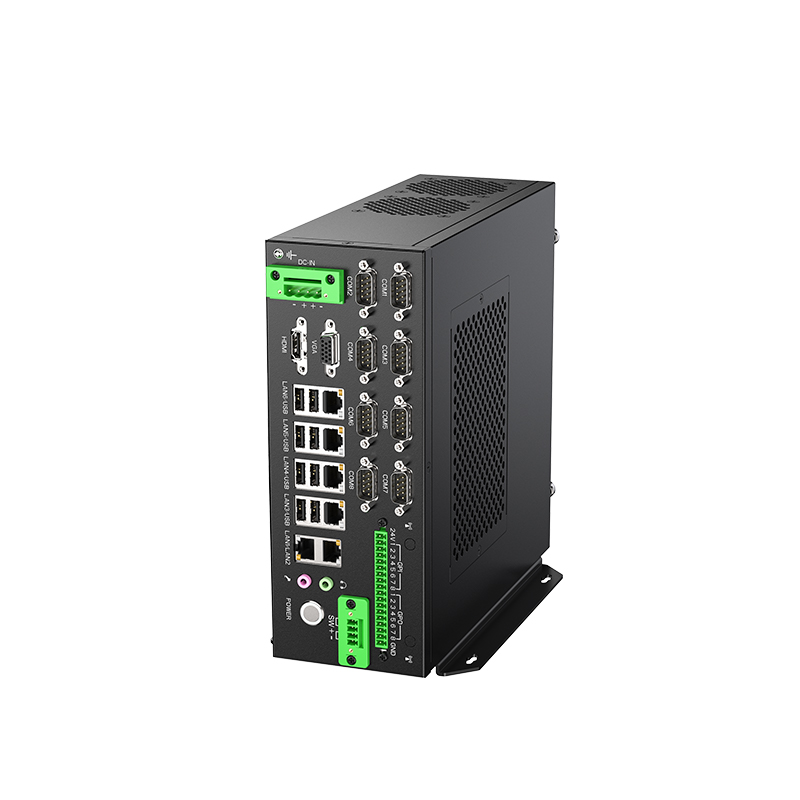

VBC-210 Intel LGA1151 6/7/8/9th Core I3/I5/I7 CPU Machine Vision Computer

Intel LGA1151 6/7/8/9th Core I3/I5/I7 CPU
Intel B365 Chipset
6 x Intel LAN(4 x POE), 16 x Opto-isolated DIO
8 x USB 3.0, 6 x COM
1 x VGA, 1 x HDMI

Darveen VBC series products for machine vision applications, which support desktop high-performance CPU, integrate 6xINTEL LAN , support 4xPOE, provide 16xisolated GPIO, can expand the motion control card, and are widely used in factory automation, pharmaceutical production line, automobile production line robot arms.

Specifications

 System  Processor Intel LGA1151 6/7/8/9th Core I3/I5/I7 CPU
 Chipset Intel B365
 Memory 2 x DDR4-2133/2666 MHz DIMM up to 64GB
 Operating System Windows 7/8.1/10, Linux
 Storage  Hard Disk 1 x 2.5″ HDD
 SSD 1 x mSATA
 I/O Connectors  COM 6 x RS232(2 x RS232/RS485)
 USB 8 x USB3.0
 LAN 6 x Intel LAN for GbE(4 x POE Options)
 Video  1 x VGA, 1 x HDMI
 Audio Line Out, Mic
 GPIO 16 x Opto-isolated DIO(Options)
Power Input 9~36V DC-IN
 Expansion Mini PCIe 1 x full-size mini PCIe
TPM TPM2.0(Options)
SIM 1 x SIM
 Antenna hole  2 x SMA-type
 Qualification  Certifications  CE, FCC Class A
 Environmental  Operating Temp. -0 ~ 60℃(SSD)
 Storage Temp. -20 ~ 85℃
 Relative Humidity 10 ~ 85% (No condensation)
 Mechanical  Housing Sheet Metal
 Mounting  Wall-mount
 Dimension (W x D x H) 230x230x88mm
 Weight 2KG
VBC-210

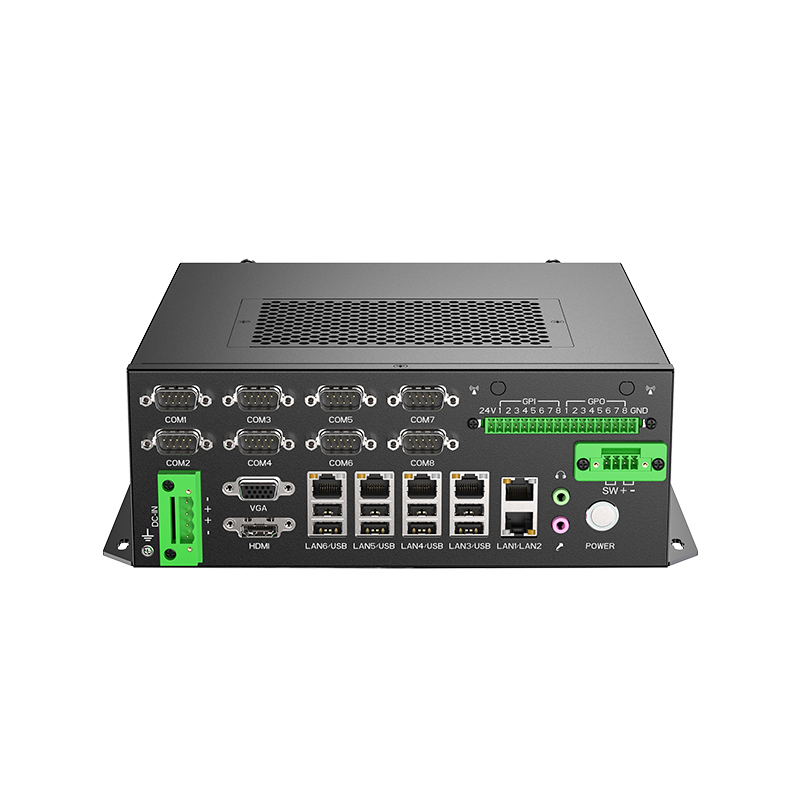

6LAN(4POE), 8USB, 6COM, VGA, HDMI, Line Out, Mic
