VT-779 10.4″ Windows Vehicle Mount Computer with 12th Gen Intel® Core-i Processor
● 10.4″ TFT-LCD with projected capacitive touchscreen
● Front panel intergrated function keys
● Rugged aluminum enclosure and fanless design
● IP65 protection against water and dust
● Compliant with MIL-STD-810H vibration testing standards
● Wide range 8 to 36VDC power input
● Flexible expansion capability for Wi-Fi 6E, Bluetooth 5.3, LTE, 5G, GNSS
The VT-779 is a ruggedized vehicle-mounted computer with Intel® Core i5-1235U processor and Windows 11 OS, offering full Windows computing power in a mobile environment. It features a 10.4-inch industrial touch screen, WiFi 6E, Bluetooth 5.3,4G/5G, GNSS, and 8 to 36V DC input, making it suitable for warehousing, logistics, and container trucks. It meets MIL-STD-810H for anti-shock/vibration and IP65 for dust/water resistance, allowing operation in demanding environments.
▌Specifications
| Display | |
| Size | 10.4 inch (4:3) |
| Touch Type | Projected capacitive multi touch |
| Display Type | TFT LCD |
| Resolution | 1024 x 768 |
| Luminance | 600 nits |
| Contrast Ratio | 1000: 1 |
| View Angles | 80 (left), 80 (right), 80 (up), 80 (down) |
| Color | 16.7M |
| System | |
| CPU | Intel® Core i5-1235U, Intel 7, 10-core (2P8E), Max Turbo 4.4GHz |
| Chipset | 12th Gen Intel® Alder Lake Platform |
| Memory | 1x DDR4-2666 SO-DIMM (up to 32GB) |
| Storage | 1x M.2 2280 SATA SSD (up to 2TB) |
| Graphics | Intel® Iris® Xe Graphics |
| BIOS | AMI UEFI BIOS |
| Keypad & Keyboard | |
| Keypad | Power on/off Brightness and volume adjustment F1-F6 user-defined function keys Power LED indicator |

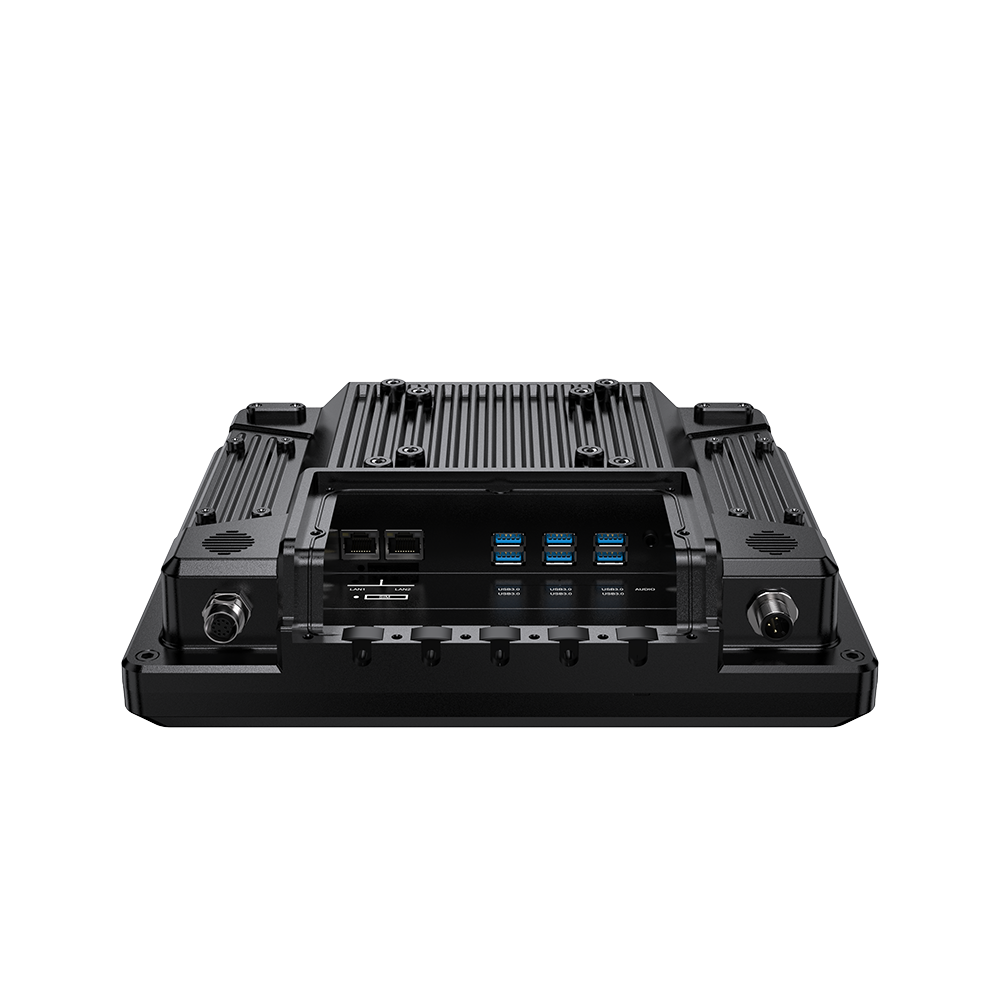

| I/O Ports | |
| USB | 6x USB 3.0 (Type A) |
| Serial | 2x RS-232 (COM1/2, M12) |
| Ethernet | 2x GbE LAN (RJ45) |
| Audio | 3.5mm Audio Jack (Mic-in/Line-out) |
| SIM Card Slot | 1x SIM Socket |
| Antenna | 2 to 8x TNC connector for external antenna (Wi-Fi, Bluetooth, WWAN, GPS) |
| RF Communication | |
| Wi-Fi | Wi-Fi 6E: 802.11a/b/g/n/ac/ax, 2.4G/5G/6G (optional) |
| Cellular | 4G, LTE (optional) 5G, NSA/SA (optional) |
| Bluetooth | Bluetooth 5.3 (depends on Wi-Fi 6E, optional) |
| GNSS | GPS, GLONASS, Galileo, BeiDou (optional, Ublo x NEO M8N) |
| Audio | |
| Speaker | 8Ω/2W, dual studio speakers |
| Power | |
| DC Input | 8 to 36VDC |
| Power Consumption | 25W (Typ.) |
| Power Mode | ATX (default), AT |
| Operating System | |
| Windows | Windows 11 IoT Enterprise LTSC Windows 10 IoT Enterprise LTSC Windows 11 Pro Windows 10 Pro |
| Mechanical | |
| Dimensions (W x D x H) | 280 x 230 x 68.5 mm (11.02 x 9.06 x 2.7 inches) |
| Weight (N.W.) | 3.35 kg (7.39 lbs) |
| Mounting Mode | VESA 75 and 100 |
| Material | Die-casting Aluminum with Heavy Duty Metal |
| Environment | |
| Operating Temperature | -30 to 60℃ (-22 to 140°F) |
| Storage Temperature | -40 to 70℃ (-40 to 158°F) |
| Relative Humidity | 95% @ 70°C (158°F), non-condensing |
| Shock | MIL-STD-810H Method 514.8 Procedure I |
| Vibration | MIL-STD-810H Method 516.8 Procedure I |
| IP Rating | IP65 compliant |
| Certification | |
| EMC | CE, FCC |
