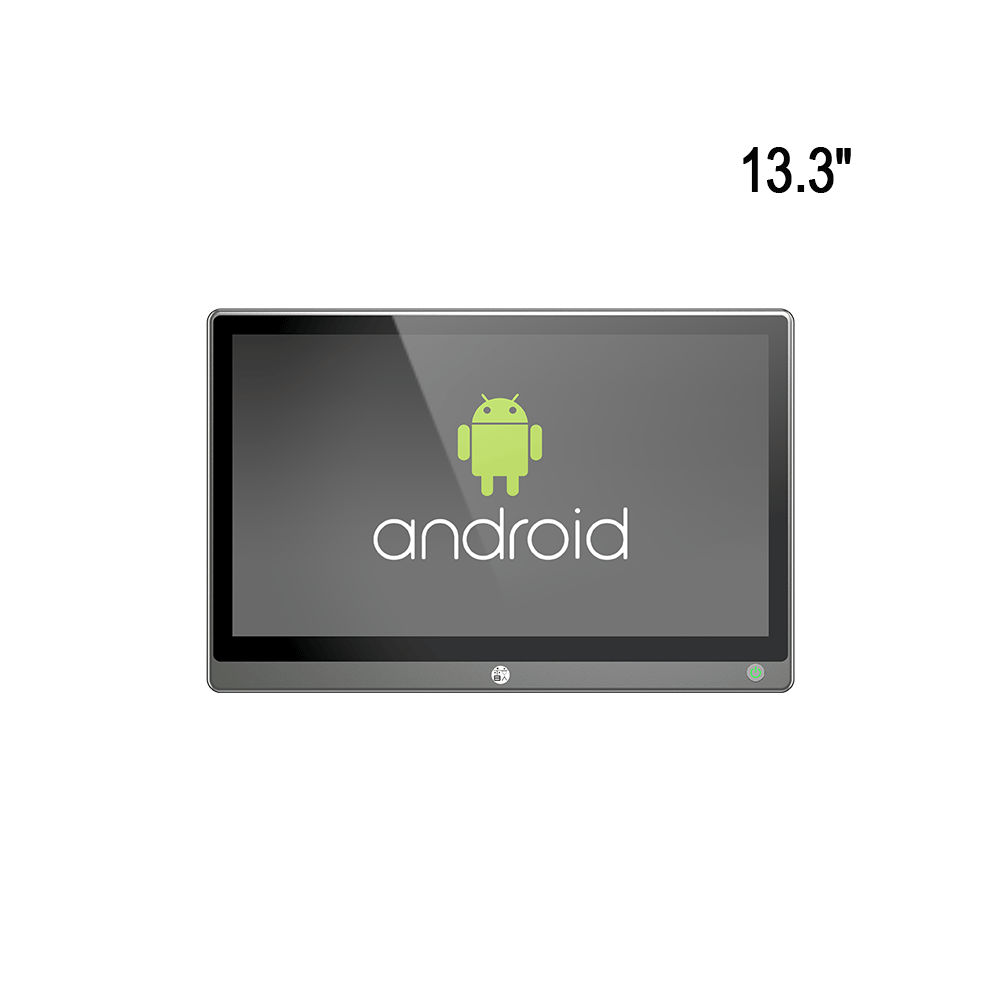

13.3″ APC-2133 Industrial Touch Panel PC with RK3568 Processor

●13.3″ LED backlight, multi touch capacitive screen
●Rugged aluminum enclosure and fanless design
●Rockchip RK3568 Quad core Cortex-A55 up to 2.0GHz processor
●1x COM, 3x USB, 1x LAN, 1x HDMI
●Supports VESA 100 mount and panel mount

▌Specifications

Display
Size	13.3 inch
Touch Type	projected capacitive multi touch
Transmitiance	87%
Control Interface	USB
Surface Hardness	≥7H
Resolution	1920 x 1080
Luminance	300 nits
Contrast Ratio	1000:1
View Angles	85 (left), 85 (right), 85 (up), 85 (down)
LED Lifetime	30,000 hrs
Color	16.7 M
System
CPU	Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz
Chipset	ARM Mali-G52 GPU
Memory	DDR4 2G,4G
Storage	16G,32G
I/O Ports
USB	1x USB 3.0, 2x USB 2.0
Serial	1x COM (COM1 supports RS-232)
Ethernet	1x GbE LAN
Display	1x HDMI
Antenna	2x SMA antenna holes
RF Communication
Wi-Fi	onboard
Bluetooth	onboard
Audio
Audio	Mic in, line out
Power
Button	Yes
DC Input	12VDC
Power Consumption	10 W
Power Adaptor	AC-DC, 12V@5A, 60W
Operating System
Android	Android11, 12
Mechanical
Dimensions (W x D x H)	323 x 212 x 36 mm (12.7 x 8.3 x 1.4 inches)
Weight (N.W.)	2.9 kg (6.3 lbs)
Mounting	Panel mount, wall mount bracket VESA 100
Material	Aluminum alloy panel, all-metal chassis
Environment
Operating Temperature	–10 to 50°C (14 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Relative Humidity	10% to 95% @ 40°C (104°F), non-condensing
Vibration	5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Certification
EMC	CE, FCC
Packing List
Packing	1x APC-2133 1x AC-DC power adapter 6x panel mounting buckles 1x warranty card
