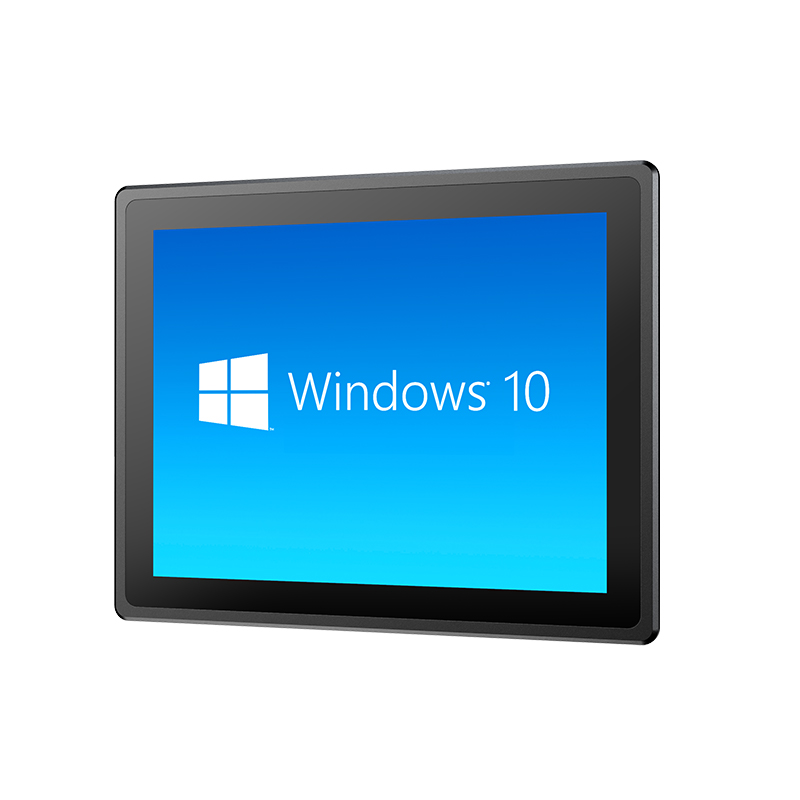

DPC-5122S 12.1″ Intel Core I5-6200U Resistive Touch Panel PC

12.1″ LED backlight LCD and Resistive touch panel
Fanless design, Front Panel IP65
Embedded Intel Skylake Core I5-6200U(2.3GHz)processor
2 COM, 4 USB, 2 GbE, HD Audio, VGA, HDMI
Panel and VESA mounting





Darveen DPC-5000s series industrial embedded touch screen computer is a compact and durable human-computer interaction platform, which adopts ultra-thin, fanless and shockproof design. 4:3 and 16:9 resistive touch screens can be selected to meet various industrial automation applications. Dpc-5000s series has high performance processor, stable system structure and advantages in industrial applications. In addition, the full range of products use aluminum alloy front panel and metal body materials, with excellent heat dissipation and rust resistance.

Specifications

System CPU Intel Skylake Core I5-6200U (2.3GHz)
Memory 2xSO-DIMM DDR4-2133 (Up to 32GB)
Storage 1 x 2.5″ Driver Bay for SATA HDD/SSD
1 x Full-size Mini-PCIe for mSATA SSD
Operating System Windows 7/8.1/10
Display Size 12.1-inch
Resolution 1024 ×768
Viewing Angle 80/80/80/80
Brightness 450 cd/m ²
Backlight LED
LED Lifetime 50000 hrs
VGA Up to 2560 x 1600
HDMI Up to 1920 x 1080
Multi-Display Dual display (LVDS + VGA/HDMI)
Touchscreen Type 5-Wire Analog Resistive Touch
Transparency 80%
Hitting life 35 million times
Surface hardness ≥3H

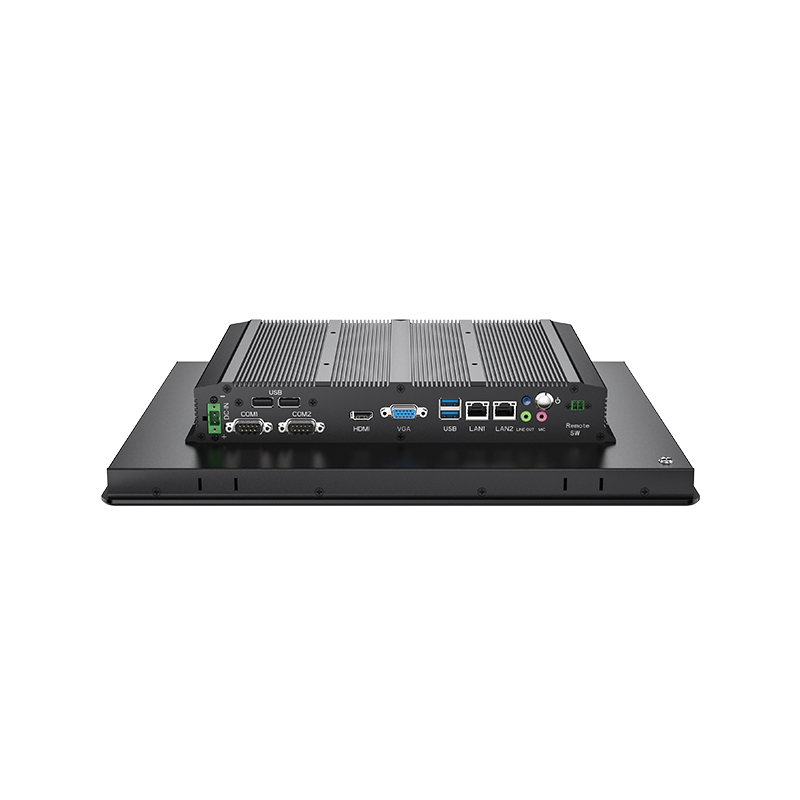

I/O Serial Port 2 x RS-232 (COM1/2)
USB Port 2 x USB3.0
2 x USB2.0
Ethernet 2 x GbE LAN
Display 1 x HDMI,1 x VGA
Audio 1 x Line-out ,1 x Mic
Others 1 x DC-IN (2-Pin Phoenix)
1 x Remote switch connector
1 x ATX Power Switch
Expansion Mini-PCIe 1 x Full-size Mini-PCIe for mSATA
1 x Full-size Mini-PCIe
Power Specification Power Input DC 12V
Power Adapter AC-DC, 12V@5A, 60W
Power Consumption 25W (Typ.)
Environment Operating Temperature -10~50 °C
Storage Temperature -20~60 ℃
Relative Humidity 10%-90%,@ 40 °C (non-condensing)
Vibration 5~500Hz, 0.026 G ²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Certifications CE, FCC
Physical Characteristics Meterial Aluminum alloy panel, all-metal structure
Mounting Mode Panel-mount, VESA-mount
Dimension (W x L x H) 310X248X62.5 mm
Weight 3.8Kg
Packing List Packing List 1 x DPC-5122S
1 x AC-DC Power Adapter
1 x Certificate
1 x Warranty Card
8 x Panel Mounting Buckles
