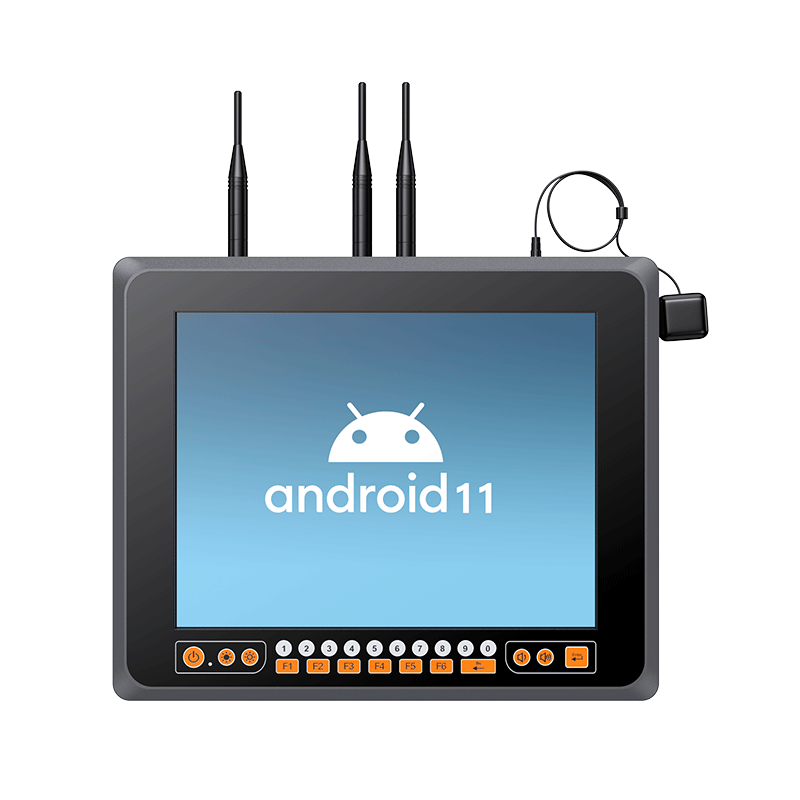

VT-840A 12.1″ Android 11 Vehicle Mount Computer with RK3399 Processor

12.1″ TFT-LCD with projective capacitive touchscreen
Front panel integrated with function key control
Rugged aluminum enclosure and fanless design
IP65 protection against water and dust
Compliant with MIL-STD-810G vibration testing standards
Wide range 8-36VDC power input with ignition control
Flexible expansion capability for Wi-Fi 5, Bluetooth 4.2, LTE/5G, GNSS



The VT-840A is a rugged 12.1-inch Android-based vehicle mount computer specifically designed for trucks, buses, forklifts, and various other applications. The VT-840A features a high-performance 6-core processor, an integrated 12.1-inch TFT LCD display with a projective capacitive touchscreen for enhanced usability. It also comes with built-in Wi-Fi 5, Bluetooth 4.2, 4G LTE/5G, and GNSS modules, enabling seamless real-time communication connections. The VT-840A boasts a fanless design, ensuring efficient cooling, and supports a wide temperature range and wide-range DC input. It is MIL-STD compliant and IP65 waterproof and dustproof, allowing it to withstand harsh operating conditions.

Specifications

Display
Size 12.1 inch (4:3)
Touch Type Projected capacitive multi touch
Display Type TFT LCD
Resolution 1024 x 768
Luminance 500 nits
Contrast Ratio 700: 1
View Angles 80 (left), 80 (right), 80 (up), 80 (down)
Color 16.2M
System
CPU Rockchip RK3399, dual core A72 + quad core A53 (1.8 GHz)
Memory 4GB DDR4-1866 on board
Storage 32GB EMMC on board
Keypad & Keyboard
Keypad Power On/off
Brightness and volume adjustment
0-9 numeric, Enter and Backspace
F1-F6 user-defined function keys, Power LED indicator
I/O Ports
USB 1x USB 3.0/OTG (Type A)
1x USB 2.0 (Type A)
Serial 1x RS-232 (DB9)
Ethernet 1x GbE LAN (RJ45)
SIM Card Slot 1x Nano SIM socket
TF Card Slot 1x TF Socket (up to 128GB)
Antenna 2-4x TNC connector for external antenna (Wi-Fi, Bluetooth, WWAN, GPS)
RF Communication
Wi-Fi Wi-Fi 5: 802.11a/b/g/n/ac, 2.4G/5G
Cellular 4G LTE
5G, NSA/SA (optional)
Bluetooth Bluetooth 4.2
GNSS GPS, GLONASS, Galileo, BeiDou
Audio
Speaker 8Ω/2W, dual studio speakers
Power
DC Input 8 to 36VDC
Power Consumption 14W (Typ.)
Power Mode ATX (default), AT
Operating System
Android Android 11
Mechanical
Dimensions (W x D x H) 320 x 260 x 66 mm (12.6 x 10.24 x 2.6 inches)
Weight (N.W.) 3.8 kg (8.4 lbs)
Mounting Mode VESA 75 and 100
Material Die-casting aluminum with heavy duty metal
Environment
Operating Temperature -20 to 60℃ (-4 to 140°F)
Storage Temperature -40 to 70℃ (-40 to 158°F)
Relative Humidity 95% @ 70°C (158°F), non-condensing
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure I
IP Rating IP65 compliant (I/O interface must be closed)
Certification
EMC CE, FCC
