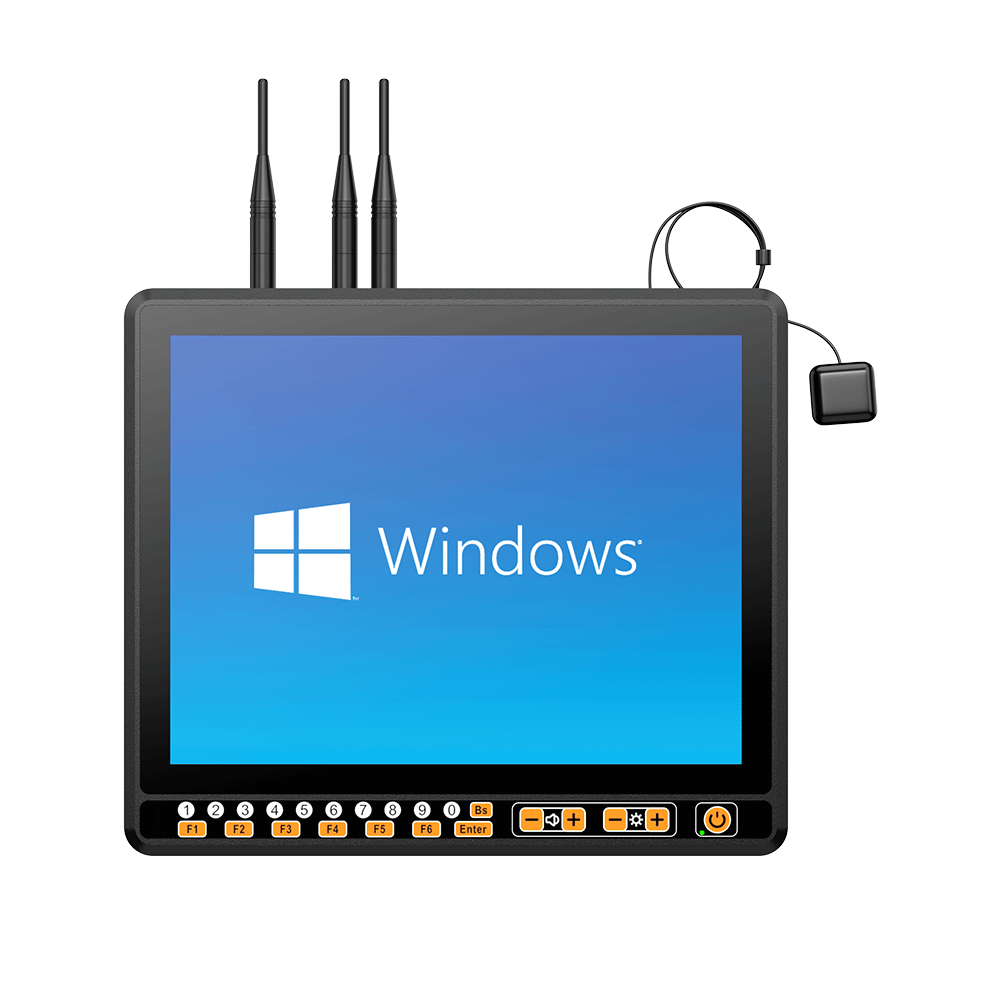

VT-979 15″ Windows Vehicle Mount Computer with Intel® 12th Gen Core-i Processor
● 15″ TFT-LCD with resistive touch/projective capacitive touch screen
● Front panel intergrated numeric and function keys control
● Rugged aluminum enclosure and fanless design
● IP66 protection against water and dust
● MIL-STD-810H vibration testing standards compliant
● Wide range 8-36VDC power input
● Flexible expansion capability for Wi-Fi 6E, Bluetooth 5.3, LTE, 5G, GNSS, CAN2.0B
VT-979 is the latest generation of ruggedized vehicle mounted computer that comes with Intel Alder Lake platform processor and Windows 11 operating system. The VT-979 harnesses full Microsoft ® Windows ® computing power in a mobile environment, optimizing application and network management compatibility, while remaining flexible enough to run multiple advanced applications.
VT-979 assembly 15-inch industrial resistive/capacitive touch screen, built-in WiFi6E, Bluetooth5.3, 4G LTE / 5G, GNSS, 8~36V wide-range DC input adapt it to the warehousing forklift, logistics, container trucks and so on. Meet the STD-MIL-810H of antishock and vibration, IP66 dust and water proof standard make it operaing freely in the most demanding environment.
▌Specifications
| Display | |
| Size | 15 inch (4:3) |
| Touch Type | Projected capacitive multi touch, 5-wire resistive touch (Optional,by request) |
| Display Type | TFT LCD |
| Resolution | 1024 x 768 |
| Luminance | 1000 cd/m² |
| Contrast Ratio | 1000: 1 |
| View Angles | 89 (left), 89 (right), 89 (up), 89 (down) |
| Color | 16.7M |
| System | |
| CPU | Intel® Core i5-1235U, Intel® 7, 10-core(2P8E), Max Turbo 4.4GHz |
| Chipset | Intel® 12th GEN Alder Lake Platform |
| Memory | 8GB DDR4-2666 SO-DIMM (up to 32GB) |
| Storage | 256GB M.2 2280 SATA SSD (up to 2TB) |
| Graphics | Intel® Iris® Xe Graphics |
| BIOS | AMI UEFI BIOS |
| Keypad & Keyboard | |
| Keypad | Power on/off Brightness and volume adjustment 0-9 numeric, Enter and Backspace F1-F6 user-defined function keys Power LED indicator |
| I/O Ports | |
| USB | 6x USB 3.0 (Type A) |
| Serial | 1x RS-232 (COM1, DB9) |
| Ethernet | 2x GbE LAN (RJ45) |
| Display | 1x HDMI (Type A) 1x DP++ (Type A) |
| Audio | 3.5mm Audio Jack (Mic-in/Line-out) |
| SIM Card Slot | 1x SIM socket |
| Antenna | 2-8x TNC connector for external antenna (Wi-Fi, Bluetooth, WWAN, GPS) |
| RF Communication | |
| Wi-Fi | Wi-Fi 6E: 802.11a/b/g/n/ac/ax, 2.4G/5G/6G (optional) |
| Cellular | 4G, LTE (optional) 5G, NSA/SA (optional) |
| Bluetooth | Bluetooth 5.3 (optional) |
| GNSS | GPS, GLONASS, Galileo, BeiDou (optional, Ublo x NEO M8N) |
| Audio | |
| Speaker | 8Ω/2W, dual studio speakers |
| Power | |
| DC Input | 8 to 36VDC |
| Power Consumption | 25W (Typ.) |
| Power Mode | ATX (default), AT |
| Operating System | |
| Windows | Windows 11 IoT Enterprise LTSC Windows 10 IoT Enterprise LTSC Windows 10 Pro |
| Mechanical | |
| Dimensions (W x D x H) | 355 x 304 x 69 mm (13.97 x 11.96 x 2.71 inches) |
| Weight (N.W.) | 4.8 kg (10.58 lbs) |
| Mounting Mode | VESA 75 and 100 |
| Material | Die-casting aluminum with heavy duty metal |
| Environment | |
| Operating Temperature | -30 to 60℃ (-22 to 140°F) |
| Storage Temperature | -40 to 70℃ (-40 to 158°F) |
| Relative Humidity | 95% @ 70°C (158°F), non-condensing |
| Shock | MIL-STD-810H Method 514.8 Procedure I |
| Vibration | MIL-STD-810H Method 516.8 Procedure I |
| IP Rating | IP66 compliant |
| Certification | |
| EMC | CE, FCC |
